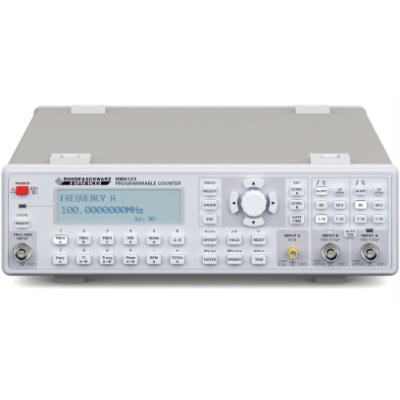

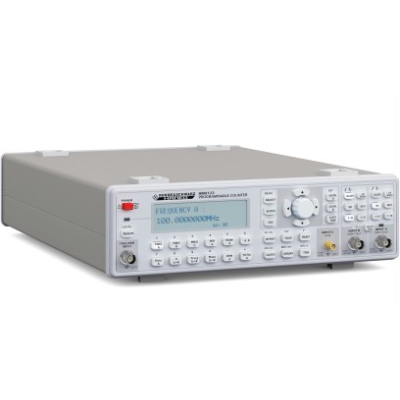

3 GHz Universal Counter

Measurement range: DC to 3 GHzInput A/B (BNC): DC to 200 MHz
Input C (SMA): 100 MHz to 3 GHz
Input impedance A/B: 50 ? or 1 M? (switchable), sensitivity 25 mV
Input impedance C: 50 ?, sensitivity 30 mV
10-digit resolution (at 10 s gate time)
Nine measurement functions, external GATE and ARMING connectors (BNC)
External reference input/output (10 MHz) via BNC connector
HM8123: TCXO (temperature stability: 0.5 × 10-6), HM8123-X: OCXO (temperature stability: 1.0 × 10-8)
RS-232/USB dual interface, optionally IEEE-488 (GPIB)
Fanless design

HM8123 : Universal Counter
HO85 : OCXO temperature stability 1×10-8
HO880 : IEEE-488 (GPIB) Interface
HZ13 : USB interface cable, 1.8 m
HZ14 : Serial interface cable, Sub-D 9-pin, 1:1, 1.8 m
HZ20 : Adapter, BNC to 4 mm banana
HZ24 : Attenuator set, 50 ? (4 pcs.), 3/6/10/20 dB
HZ33 : Test cable, 50 ?, BNC/BNC, 0.5 m (~20")
HZ34 : Test cable, 50 ?, BNC/BNC, 1 m (~40")
HZ42 : 19" rackmount kit, 2 RU
HZ72 : GPIB cable, 2 m, 90 angled, stackable
