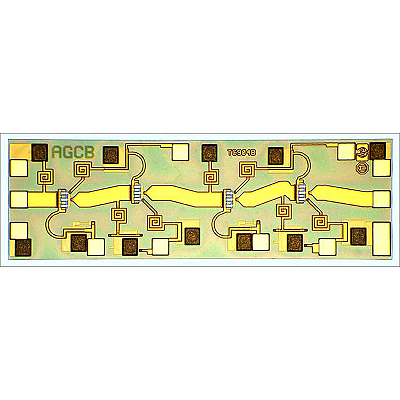

Hp/Agilent/Keysight HMMC-5023 23 GHz Low Noise Amplifier
Product Details
-
Manufacturer: Hp/Agilent/Keysight
-
Model: HMMC-5023
-
Description:
The HMMC-5023 is a a GaAs MMIC amplilfer with moderate gain and low noise. These parts are sold exclusively through distribution. Please use the How to Buy link to contact your local distributor.
The HMMC-5023 is a GaAs MMIC low noise amplifier designed for moderate gain and low noise from 21 GHz to over 30 GHz. Typical applications of the HMMC-5023 include digital radio communications systems that operate within the 21.2 GHz to 23.6 GHz and 24.5 GHz to 26.5 GHz frequency bands. Moderate gain and low noise temperature make it ideally suited as a front-end gain stage.Keysight HMMC-5023 does not contain any intentionally added RoHS substances above permitted maximum thresholds.All HMMC parts are manufactured in Santa Rosa, California using Keysights reliable instrument grade GaAs process.
Frequency Range: 21.2 GHz -23.6 GHz and 24.5 26 GHz Specified. 21 30 GHz PerformanceLow Noise Temperature: 226 K (2.5 dB NF) Typical50 Input/Output MatchingSingle Supply Bias with Optional Bias Adjust: 5 Volts (@24 mA Typical)
