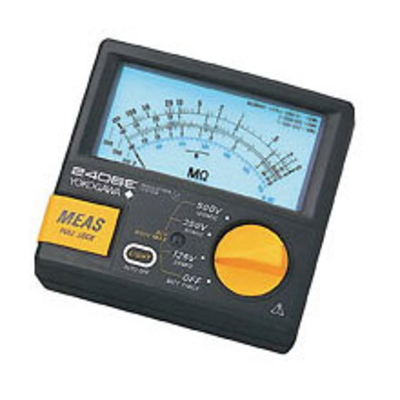

The 2406E Analog Insulation Tester

Specifications – Model 240631

Rating
125V/20M~ 25V/5M~ 50V/10M~

Effective Measuring Range
0.001-5M~ 0.005-10M~ 0.01-20M~

Central Scale Value
0.1M~ 0.2M~ 0.5M~

AC Voltage Measurement
0 to 300 V

Lower Limit
0.025M~ 0.05M~ 0.125~

Rated Current
1 mA

Approx. Outer Scale Length
88 mm

Discharge Function
The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&

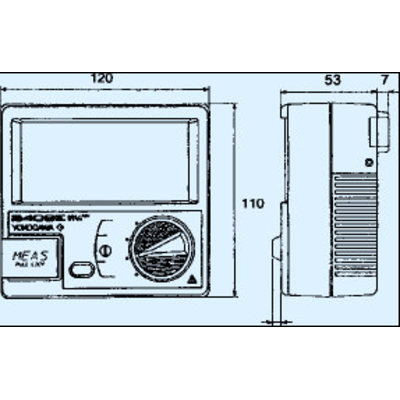

Approx. Width
120 mm

Approx. Height
110 mm

Approx. Depth
60 mm

Approx. Weight
500 g

Batteries
Six AA (R6P) batteries

Standard Accessories
Batteries (Qty- 6) Carrying case (B9075MU) (Qty 1) Earth probe (blake); approx. 1 m long Earth probes and Line Probes (98007) (Qty – 1) User’s Manual (Qty – 1) With probe-housing pocket and neck strap

Standard Test Conditions – Model 240631

Ambient Temperature/Humidity Ranges
23 ±5 /45-75% RH

Position of Use
Horizontal (5º max. of angle of inclination)

External Magnetic Fields
None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)

Tolerance Mentioned Conditions
Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.

Specifications – Model 240641

Rating
125V/20M~ 25V/5M~ 50V/10M~

Effective Measuring Range
0.001-5M~ 0.005-10M~ 0.01-20M~

Central Scale Value
0.1M~ 0.2M~ 0.5M~

AC Voltage Measurement
0 to 300 V

Lower Limit
0.025M~ 0.05M~ 0.125~

Rated Current
1 mA

Approx. Outer Scale Length
88 mm

Discharge Function
The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&

Approx. Width
120 mm

Approx. Height
110 mm

Approx. Depth
60 mm

Approx. Weight
500 g

Batteries
Six AA (R6P) batteries

Standard Accessories
Batteries (Qty- 6) Carrying case (B9075MU) (Qty 1) Earth probe (blake); approx. 1 m long Earth probes and Line Probes (98007) (Qty – 1) User’s Manual (Qty – 1) With probe-housing pocket and neck strap

Standard Test Conditions – Model 240641

Ambient Temperature/Humidity Ranges
23 ±5 /45-75% RH

Position of Use
Horizontal (5º max. of angle of inclination)

External Magnetic Fields
None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)

Tolerance Mentioned Conditions
Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.

Specifications – Model 240632

Rating
125V/20M~

Effective Measuring Range
0.01-20M~

Central Scale Value
0.5M~

AC Voltage Measurement
0 to 300 V

Lower Limit
0.125~

Rated Current
1 mA

Approx. Outer Scale Length
88 mm

Discharge Function
The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&

Approx. Width
120 mm

Approx. Height
110 mm

Approx. Depth
60 mm

Approx. Weight
500 g

Batteries
Six AA (R6P) batteries

Standard Accessories
Batteries (Qty- 6) Carrying case (B9075MU) (Qty 1) Earth probe (blake); approx. 1 m long Earth probes and Line Probes (98007) (Qty – 1) User’s Manual (Qty – 1) With probe-housing pocket and neck strap

Standard Test Condtions – Model 240632

Ambient Temperature/Humidity Ranges
23 ±5 /45-75% RH

Position of Use
Horizontal (5º max. of angle of inclination)

External Magnetic Fields
None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)

Tolerance Mentioned Conditions
Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.

Specifications – Model 240642

Rating
250V/50M~

Effective Measuring Range
0.01-50M~

Central Scale Value
1M~

AC Voltage Measurement
0 to 300 V

Lower Limit
0.25~

Rated Current
1 mA

Approx. Outer Scale Length
88 mm

Discharge Function
The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&

Approx. Width
120 mm

Approx. Height
110 mm

Approx. Depth
60 mm

Approx. Weight
500 g

Batteries
Six AA (R6P) batteries

Standard Accessories
Batteries (Qty- 6) Carrying case (B9075MU) (Qty 1) Earth probe (blake); approx. 1 m long Earth probes and Line Probes (98007) (Qty – 1) User’s Manual (Qty – 1) With probe-housing pocket and neck strap

Standard Test Conditions – Model 240642

Ambient Temperature/Humidity Ranges
23 ±5 /45-75% RH

Position of Use
Horizontal (5º max. of angle of inclination)

External Magnetic Fields
None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)

Tolerance Mentioned Conditions
Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.

Specifications – Model 240633

Rating
125V/20M~ 250V/50M~ 500V/100M~

Effective Measuring Range
0.01-20M~ 0.01-50M~ 0.05-100M~

Central Scale Value
0.5M~ 1M~ 2M~

AC Voltage Measurement
0 to 600 V

Lower Limit
0.125M~ 0.25M~ 0.5~

Rated Current
1 mA

Approx. Outer Scale Length
88 mm

Discharge Function
The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&

Approx. Width
120 mm

Approx. Height
110 mm

Approx. Depth
60 mm

Approx. Weight
500 g

Batteries
Six AA (R6P) batteries

Standard Accessories
Batteries (Qty- 6) Carrying case (B9075MU) (Qty 1) Earth probe (blake); approx. 1 m long Earth probes and Line Probes (98007) (Qty – 1) User’s Manual (Qty – 1) With probe-housing pocket and neck strap

Standard Test Conditions – Model 240633

Ambient Temperature/Humidity Ranges
23 ±5 /45-75% RH

Position of Use
Horizontal (5º max. of angle of inclination)

External Magnetic Fields
None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)

Tolerance Mentioned Conditions
Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.

Specifications – Model 240343

Rating
125V/20M~ 250V/50M~ 500V/100M~

Effective Measuring Range
0.01-20M~ 0.01-50M~ 0.05-100M~

Central Scale Value
0.5M~ 1M~ 2M~

AC Voltage Measurement
0 to 600 V

Lower Limit
0.125M~ 0.25M~ 0.5~

Rated Current
1 mA

Approx. Outer Scale Length
88 mm

Discharge Function
The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&

Approx. Width
120 mm

Approx. Height
110 mm

Approx. Depth
60 mm

Approx. Weight
500 g

Batteries
Six AA (R6P) batteries

Standard Accessories
Batteries (Qty- 6) Carrying case (B9075MU) (Qty 1) Earth probe (blake); approx. 1 m long Earth probes and Line Probes (98007) (Qty – 1) User’s Manual (Qty – 1) With probe-housing pocket and neck strap

Standard Test Conditions – Model 240643

Ambient Temperature/Humidity Ranges
23 ±5 /45-75% RH

Position of Use
Horizontal (5º max. of angle of inclination)

External Magnetic Fields
None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)

Tolerance Mentioned Conditions
Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.

Specifications – Model 240634

Rating
1000V/2000M~ 250V/50M~ 500V/100M~

Effective Measuring Range
0.01-50M~ 0.05-100M~ 1-2000M~

Central Scale Value
1M~ 2M~ 50M~

AC Voltage Measurement
0 to 600 V

Lower Limit
0.25M~ 0.5M~ 1~

Rated Current
1 mA

Approx. Outer Scale Length
88 mm

Discharge Function
The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&

Approx. Width
120 mm

Approx. Height
110 mm

Approx. Depth
60 mm

Approx. Weight
500 g

Batteries
Six AA (R6P) batteries

Standard Accessories
Batteries (Qty- 6) Carrying case (B9075MU) (Qty 1) Earth probe (blake); approx. 1 m long Earth probes and Line Probes (98007) (Qty – 1) User’s Manual (Qty – 1) With probe-housing pocket and neck strap

Standard Test Condtions – Model 240634

Ambient Temperature/Humidity Ranges
23 ±5 /45-75% RH

Position of Use
Horizontal (5º max. of angle of inclination)

External Magnetic Fields
None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)

Tolerance Mentioned Conditions
Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.

Specifications – 240644

Rating
1000V/2000M~ 250V/50M~ 500V/100M~

Effective Measuring Range
0.01-50M~ 0.05-100M~ 1-2000M~

Central Scale Value
1M~ 2M~ 50M~

AC Voltage Measurement
0 to 600 V

Lower Limit
0.25M~ 0.5M~ 1~

Rated Current
1 mA

Approx. Outer Scale Length
88 mm

Discharge Function
The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&

Approx. Width
120 mm

Approx. Height
110 mm

Approx. Depth
60 mm

Approx. Weight
500 g

Batteries
Six AA (R6P) batteries

Standard Accessories
Batteries (Qty- 6) Carrying case (B9075MU) (Qty 1) Earth probe (blake); approx. 1 m long Earth probes and Line Probes (98007) (Qty – 1) User’s Manual (Qty – 1) With probe-housing pocket and neck strap

Standard Test Conditions – Model 240644

Ambient Temperature/Humidity Ranges
23 ±5 /45-75% RH

Position of Use
Horizontal (5º max. of angle of inclination)

External Magnetic Fields
None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)

Tolerance Mentioned Conditions
Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.

Specifications – Model 240635

Rating
1000V/2000M~ 250V/500M~ 500V/1000M~

Effective Measuring Range
0.1-500M~ 0.5-1000M~ 1-2000M~

Central Scale Value
10M~ 20M~ 50M~

AC Voltage Measurement
0 to 600 V

Lower Limit
0.25M~ 0.5M~ 1~

Rated Current
1 mA

Approx. Outer Scale Length
88 mm

Discharge Function
The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&

Approx. Width
120 mm

Approx. Height
110 mm

Approx. Depth
60 mm

Approx. Weight
500 g

Batteries
Six AA (R6P) batteries

Standard Accessories
Batteries (Qty- 6) Carrying case (B9075MU) (Qty 1) Earth probe (blake); approx. 1 m long Earth probes and Line Probes (98007) (Qty – 1) User’s Manual (Qty – 1) With probe-housing pocket and neck strap

Standard Test Conditions – Model 240635

Ambient Temperature/Humidity Ranges
23 ±5 /45-75% RH

Position of Use
Horizontal (5º max. of angle of inclination)

External Magnetic Fields
None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)

Tolerance Mentioned Conditions
Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.

Specifications – Model 240645

Rating
1000V/2000M~ 250V/500M~ 500V/1000M~

Effective Measuring Range
0.1-500M~ 0.5-1000M~ 1-2000M~

Central Scale Value
10M~ 20M~ 50M~

AC Voltage Measurement
0 to 600 V

Lower Limit
0.25M~ 0.5M~ 1~

Rated Current
1 mA

Approx. Outer Scale Length
88 mm

Discharge Function
The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (&

Approx. Width
120 mm

Approx. Height
110 mm

Approx. Depth
60 mm

Approx. Weight
500 g

Batteries
Six AA (R6P) batteries

Standard Accessories
Batteries (Qty- 6) Carrying case (B9075MU) (Qty 1) Earth probe (blake); approx. 1 m long Earth probes and Line Probes (98007) (Qty – 1) User’s Manual (Qty – 1) With probe-housing pocket and neck strap

Standard Test Conditions – Model 240645

Ambient Temperature/Humidity Ranges
23 ±5 /45-75% RH

Position of Use
Horizontal (5º max. of angle of inclination)

External Magnetic Fields
None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)

Tolerance Mentioned Conditions
Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.
