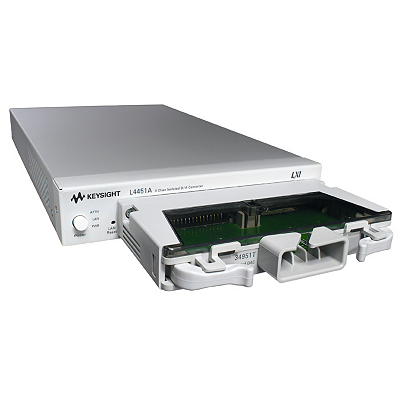

The Keysight L4451A is a high-performance 4-channel D/A converter that is LXI compliant. Each channel can be updated individually with a 200 kHz update rate. You can use the standard waveforms provided or create your own with over 500,000 points. These points can be dynamically allocated among one or more channels and output as a point-to-point arb.

These D/As are useful to source bias voltages to your device under test, to control your analog programmable power supplies, or use the outputs as setpoints for your control systems.

A Standard 50-pin Dsub connector allows for use with standard cables, terminal blocks, or mass interconnect solutions.

Also consider the 34980A 8-slot switch/measure unit that allows you to mix and match different modules into a low-cost, compact solution. Click here.

LXI compliance includes built-in Ethernet connectivity

Fully-featured graphical web interface

Four isolated analog outputs

Output up to +/-16V DC or +/-20mA DC

16-bits of resolution

200 kHz update rate

Default standard waveforms

Onboard memory to create your own waveforms, software drivers for most common programming environments
