The LCR-8000G Series LCR meter, with test frequency up to 10MHz, provides accuracy, versatility and high resolution for a wide range of component measurements, even including DC resistance measurement and Voltage/Current monitoring. The Multi-Step function allows on-screen programming of customized measurement sequence with Pass/Fail indication. Each program includes 30 test steps and each test step can be set with selected parameters and test limits. Under Multi-Step operation, a tedious work routine can be done step by step automatically just at a press of a button. With Graph Mode, LCR-8110G, LCR-8105G and LCR-8101G display the component impedance response either over a wide range of test frequency sweep or over a wide range of test voltage sweep in a graph chart. This gives an analysis result of either impedance vs. frequency or impedance vs. applied voltage all at a glance. GPIB and RS-232C interfaces are available as standard for instrument control and test result display on the PC. The rich features of LCR-8000G Series easily make your measurement tasks done at a very competitive price.The Smarter Way to Characterize Component

Test Frequency:
12Hz~200kHz (LCR-821)
12Hz~100kHz (LCR-819/829)
12Hz~10kHz (LCR-817/827)

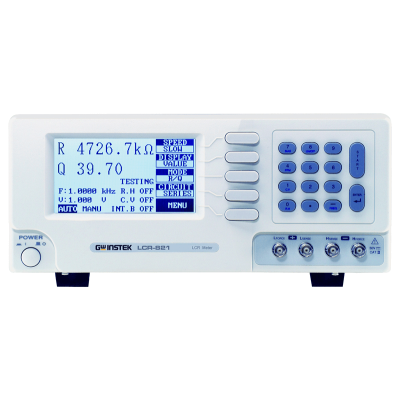

100Hz~2kHz (LCR-816/826)
0.05%~0.1% Basic Accuracy
100 Sets Memory for Save/Recall of Settings
R/Q, C/D, C/R, L/Q, Z/, L/R Test Modes
Absolute Value,Value, and % Measurement Display
240 × 128 dot Matrix LCD Display
Displays Condition and Test Result Simultaneously
Standard Interface: RS-232C (LCR-821)/ Handler (LCR-829/827/826)
Optional Interface: RS-232C (LCR-819/817/816)
