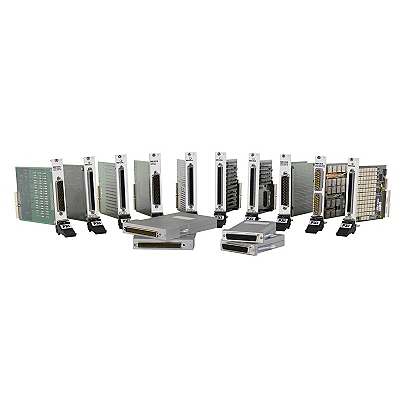

The M9122A is an 8×32 full crosspoint switch matrix offering high-voltage switching in a high-density PXI module. This module allows for higher voltage switching of multiple channels in a single instance. Any row can be connected to any column, making it ideal for routing instrument signals to the device under test. This module is configured with a common ground. The durable armature switches are capable of switching up to 100Vrms, with up to 60W of power. The 8-wide bus can be used to route signals between your instruments and the device under test. Choose from the durable connector block orstandard cable connections.

Software drivers support most common programming environments such as Visual Studio, C, C++, C#, Visual Basic, MATLAB and LabVIEWTM. The high-quality switches with durable connections ensure trustworthy measurements.Installation and configuration are fast and easy withKeysight Connection Expert and soft front panels.

Visual Studio is a registered trademark of Microsoft Corporation in the United States and/or other countries.
MATLAB is a U.S. registered trademark of The Math Works, Inc.
LabVIEW is a registered trademark of National Instruments.

Application

Connect multiple instruments to multiple points for automated test applications

Functionality

8×32 high-density 1-wire switch matrix

100Vrms

2A switch/carry current

60W max power

Performance characteristics

Durable 60W armature switches
