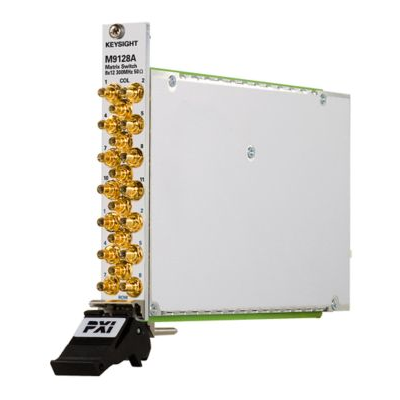

The M9128A contains an 8×12 RF switch matrix in a single PXI module. This switch matrix is used for routing multiple signals up to 300 MHz in a single instance, allowing any combination of channel closures to connect to multiple instruments. Disconnect switches isolate the rows for better overall RF performance. This module also features easy, snap-on SMB connections in a high-performance, bi-directional switch matrix.

Software drivers support most common programming environments such as Visual Studio, C, C++, C#, Visual Basic, MATLAB and LabVIEWTM. In addition, this module delivers high-performance RF switching and fast, easy installation and configuration with Keysight Connection Expert and soft front panels.

Visual Studio is a registered trademark of Microsoft Corporation in the United States and/or other countries.
MATLAB is a U.S. registered trademark of The Math Works, Inc.
LabVIEW is a registered trademark of National Instruments.

Application

General purpose signal routing to 300 MHz for connecting multiple points to multipleinstruments at one time

Functionality

High-density, 8×12, 50 ohm switch matrix to 300 MHz

30V, 0.5A, 10W switching

Bi-directional with common ground

Performance characteristics

High-quality SMB connectors

Row disconnect switches for better RF performance
