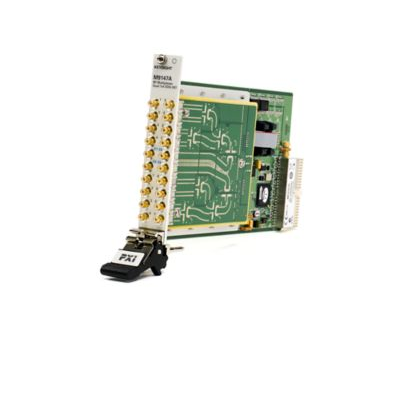

The M9147A contains four 1×4 RF switch multiplexers in a single PXI module. It offers 50 ohm inputs with bi-directional switching up to 3 GHz. This module features excellent insertion loss and VSWR for better RF signal integrity as well as outstanding dynamic range for routing RF signals into your measurement equipment. Each path is carefully designed to ensure repeatable RF performance. This module features easy, snap-on SMB connectors.

Software drivers support most common programming environments such as Visual Studio, C, C++, C#, Visual Basic, MATLAB and LabVIEWTM. In addition, this module delivers high- density, high-performance RF switching with fast, easy installation and configuration via Keysight Connection Expert and soft front panels.

Visual Studio is a registered trademark of Microsoft Corporation in the United States and/or other countries.
MATLAB is a U.S. registered trademark of The Math Works, Inc.
LabVIEW is a registered trademark of National Instruments.

Application

RF switching to 3 GHz for routing signals to your measurement equipment

Functionality

Quad 1×4 50 ohm RF switch multiplexer to 3GHz

30V, 1A, 1W switching

50 dB isolation at 1 GHz

1.3 dB insertion loss at 3 GHz

Performance characteristics

High-quality SMB connectors

Low insertion loss and VSWR for better signal integrity
