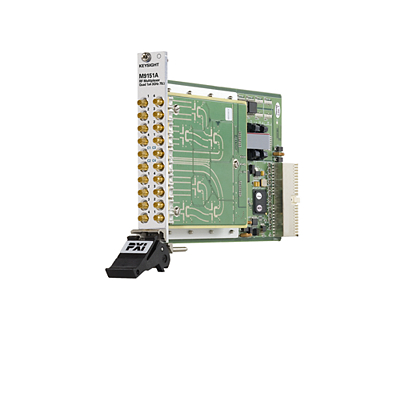

The M9151A contains four 1×4 RF switch multiplexers in a single PXI module. It offers bi-directional switching up to 3 GHz. The 75 ohm inputs make it ideal for routing video RF signals. This module offers excellent insertion loss and VSWR for better RF signal integrity. Each path is carefully designed to ensure repeatable RF performance. Connections are made through easy, snap-on SMB connectors.

Software drivers support most common programming environments such as Visual Studio, C, C++, C#, Visual Basic, MATLAB and LabVIEWTM. In addition, this module delivers high- density, high-performance RF switching with fast, easy installation and configuration via the Keysight Connection Expert and soft front panels.

Visual Studio is a registered trademark of Microsoft Corporation in the United States and/or other countries. MATLAB is a U.S. registered trademark of The Math Works, Inc.
LabVIEW is a registered trademark of National Instruments.

Application

RF signal routing to 3 GHz for 75 ohm applications

Functionality

Quad 1×4 75 ohm RF switch multiplexer to 3GHz

30V, 1A, 10W switching

75 ohm input impedance

43 dB isolation at 1 GHz

Performance characteristics

High-quality SMB connectors

Low insertion loss and VSWR for better signal integrity
