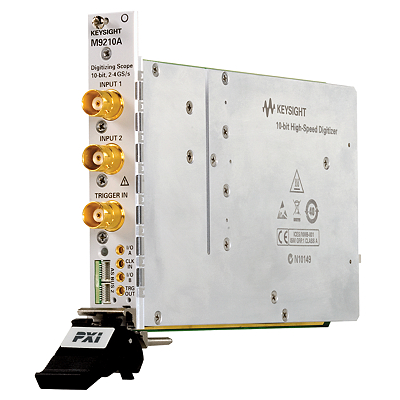

The M9210A is a one-slot 3U PXI-Hybrid high-speed Digitizing Scope featuring 2 channels with 1.4 GHz analog bandwidth and up to 4 GS/s real-time sampling rate, significantly reducing data acquisition and testing times. The M9210A Digitizing Scope comes with on-board memory of up to 512 MB. Ideal for high-speed applications such as telecommunications, ATE, and semiconductor testing, the M9210A is the best successor to the Keysight VXI E1428.
The M9210A allows multi-module synchronization thanks to the auto-synchronous bus system able to reach picoseconds-level accuracy between multiple channels.
Applications
Aerospace and Defense
Electronic test
Wireless
Functionality
Up to 4 GS/s sampling rate and 1.4 GHz bandwidth
Large on-board memory up to 256 MSamples/channel
Selectable 50/1M input impedance
Performance characteristics
PXI-H 1-slot 3U, 100 MB/s data transfer
1.4 GHz BW in 50 and 300 MHz BW in 1M
15 ps accuracy Trigger-Time-Interpolator
