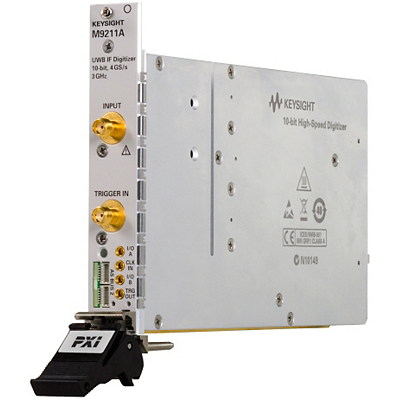

The M9211A is a one-slot 3U PXI-Hybrid single-channel Ultra-wideband IF digitizer able to capture signals at up to 3 GHz and running at up to 4 GS/s, significantly reducing data acquisition and testing times. The M9211A UWB IF Digitizer comes with on-board memory of up to 512 MBytes. Ideal for very high frequency signal capture in applications such as A&D, telecommunications, ATE, and semiconductor testing. The M9211A is also a lower-cost alternative to the M9202A 12-bit IF Digitizer.

The M9211A allows multi-module synchronization thanks to the auto-synchronous bus system able to reach picoseconds-level accuracy between multiple channels.

Applications

Aerospace and Defense

Radar test

Wideband signal capture

Functionality

Up to 4 GS/s sampling rate and 3 GHz bandwidth

Large on-board memory up to 512 MSamples

DC-coupled 50 input

Performance characteristics

PXI-H 1-slot 3U, 100 MB/s data transfer

3 GHz Bandwidth

SFDR = 42 dB @ 1 GHz
