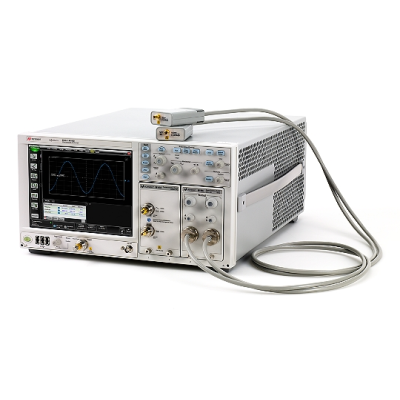

Hp/Agilent/Keysight 86118A 70 GHz Dual Remote Sampling Head

Product Details

  • Manufacturer: Hp/Agilent/Keysight

  • Model: 86118A

  • Description:

Sort By

  • Two 70 GHz electrical channels with 1.85 mm (f) connectors on two remote sampling heads, each with 2 m cable
  • Characteristic rms noise: 0.4 mV (30 GHz bandwidth), 1.3 mV (70 GHz bandwidth)
  • Maximum input signal: ± 2 Vdc
  • Electrical inputs: 1.85 mm female. Must select m or f connector savers (see options)

Bandwidth 70 GHz
Noise Floor n/a
Supported Data Rates n/a
Input Type 1.85 mm
Module Type Electrical
Applications n/a
Operating System n/a

Options & Upgrades

Options

Calibration documentation
86118A-UK6 Commercial calibration certificate with test data US$ 406

Special options
86118A-H01 Less than 40 ps skew between the 2 channels and alignment capability within 100 ps US$ 6,729
86118A-H11 Provides amplitude data up to 110 GHz US$ 3,562

Adapters
86118A-101 Two 1.85 mm M/M connector savers/adapters US$ 0
86118A-102 1 x 1.85 mm M/F and 1 M/M connector saver/adapter US$ 0
86118A-103 Two 1.85 mm M/F connector savers/adapters US$ 0

Cables
86118A-201 15cm 1.85mm rigid cable US$ 1,248
