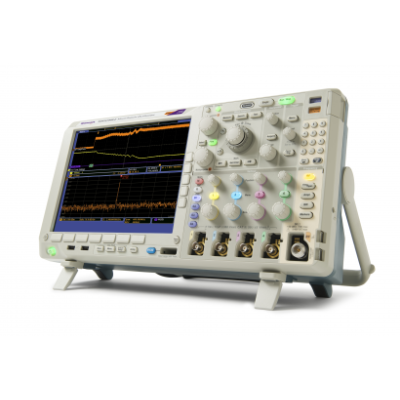

Tektronix MDO4034B-3 Mixed Domain Oscilloscope

Product Details

Manufacturer: Tektronix
Model: MDO4034B-3
Description:
Tektronix 350Mhz, 4 channels oscilloscope

No Current Sellers for Tektronix MDO4034B-3

Although you can use the MDO4000B Series simply as a mixed signal oscilloscope or as a spectrum analyzer, the real power comes from the integration of the two. For the first time, you can see how your designs perform in both the time and frequency domains on a single instrument, at any instant. Use powerful trigger, search and analysis tools to zero in on analog and digital anomalies. Decode serial buses alongside waveforms. And view the RF spectrum at any point in time. With SignalVu-PC software, perform extensive analysis and troubleshooting on Wi-Fi and Bluetooth_ wireless signals.
Quickly solve complicated design issues with an oscilloscope as integrated as your designs.

Features	Benefits
4 analog, 16 digital, and 1 RF channel	Analyze analog, digital, and RF signals on a single instrument for system-level troubleshooting of complex designs.
Integrated spectrum analyzer with wide capture bandwidth	Accurately analyze your RF signals with -65 dBc (typical) dynamic range with up to 6 GHz frequency range and see your whole spectrum of interest with up to 3.75 GHz ultra-wide capture bandwidth.
Complete set of triggers including advanced RF triggers	Rapidly capture signal anomalies with over 125 available trigger combinations, including setup/hold, serial packet content, parallel data, and specific RF events with advanced RF power triggers - pulse width, runt, logic and more.
Serial and parallel bus triggering and analysis	Quickly debug your parallel bus and/or common serial buses with automated trigger, decode and search.
Wave Inspector® Controls	Easily search, mark and navigate long record lengths to find all occurrences of your event.
Low-capacitance passive voltage probing	Four probes with industry-best 3.9 pF capacitive loading and up to 1 GHz bandwidth are included standard to ensure accurate measurements.
Time-correlated display with Spectrum Time	Investigate how your RF spectrum is changing over time or with device state by moving Spectrum Time through your acquisition. See what's happening in your design at any instant with the time-correlated display of your analog, digital and RF signals.
RF vs. time traces	See amplitude, frequency or phase vs. time for your RF signal displayed in the time domain; easily measure RF/system latencies.
Advanced RF analysis with SignalVu-PC vector signal analysis software	Enables Bluetooth and WLAN (IEEE 802.11 a/b/g/n/p/ac) signal quality analysis, pulse analysis, audio measurements, AM/FM/PM modulation analysis, general purpose digital modulation and more.

DPO4AERO   Application Module: Aerospace Serial Triggering and Analysis (MIL-STD 1553)
DPO4AUDIO   Application Module: Audio Serial Triggering and Analysis (I2S, LJ, RJ, TDM)
DPO4AUTO   Application Module: Automotive Serial Triggering and Analysis (CAN, LIN)
DPO4AUTOMAX   Application Module: Extended Automotive Serial Triggering and Analysis (CAN, LIN, FlexRay)
DPO4BND   Application Module; Bundle module for MDO/MSO/DPO4000B and MDO4000 Series (Includes DPO4AERO, DPO4AUDIO,DPO4AUTO,DPO4COMP,DPO4EMBD,DPO4ENET,DPO4LMT,DPO4PWR,DPO4USB,DPO4VID)
DPO4COMP   Application Module: Computer Serial Triggering and Analysis (RS-232/422/485/UART)
DPO4EMBD   Application Module: Embedded Serial Triggering and Analysis (I2C, SPI)
DPO4ENET   Application Module: Ethernet Serial Triggering and Analysis (10BASE-T, 100BASE-TX)
DPO4LMT   Application Module: Limit and Mask Testing
DPO4PWR   Application Module: Power Measurement and AnalysisDPO4USB   Application Module: USB Serial Triggering and Analysis (USB2.0 LS, HS, FS)
DPO4VID   Application Module: HDTV and Custom Video Triggering
MDO4TRIG   Advanced RF Triggering Application Module - Width, Runt, Timeout, and Logic triggers on the RF input of the MDO4000 Series
