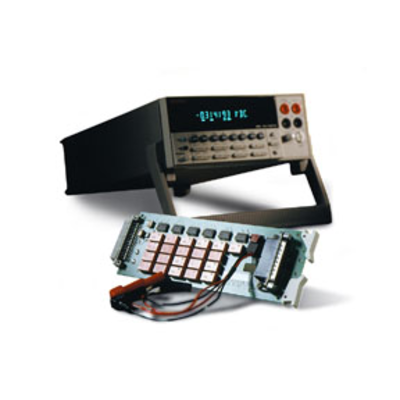

A 10-channel scanner that installs into the option slot on any 2000 Series DMM. Multiplex one of ten 2-pole or one of five 4-pole signals into the Model 2000 or 2010 and/or any combination of 2-or 4-pole signals. Contact potential is typically less than 500nV per contact pair (1V maximum) for high measurement integrity.

GENERAL:
20 Channels: 20 channels of 2-pole relay input. All channels configurable to 4-pole.
Relay Type: Latching electromechanical.
Actuation Time: <3.5ms.
CAPABILITIES: Multiplex one of twenty 2-pole or one of ten 4-pole signals into DMM.
INPUTS
Maximum Signal Level:
DC Signals: 60V DC, 0.5A switched, 30VA maximum (resistive load).
AC Signals: 30V AC rms or 42.4V AC peak, 100kHz maximum, 0.5A switched, 15VA maximum
(resistive load).
Contact Life: >105 operations at maximum signal level; >108 operations cold switching.
Contact Resistance: <1.5Ω at end of contact life.
Contact Potential: <±1µV typical per contact, 2µV max. <±1µV typical per contact pair,
2µV max.
Connector Type: 44 pin male D-subminiature.
Isolation Between Any Two Terminals: >108Ω, <75pF.
Isolation Between Any Terminal and Earth: >108Ω, <150pF.
Common Mode Voltage: 42.4VAC peak; 60VDC between any terminal and earth.
Maximum Voltage Between Any Two Terminals: 42.4VAC peak, 60VDC.
Maximum Voltage Between Any Terminal and Model 2000 Input LO: 42.4VAC peak,
60VDC
