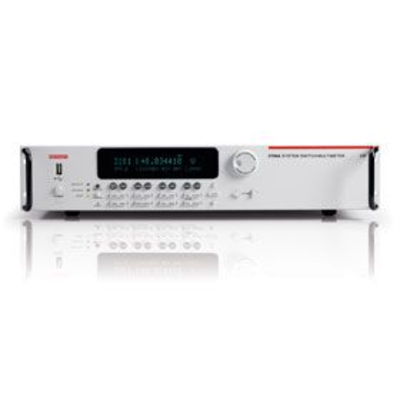

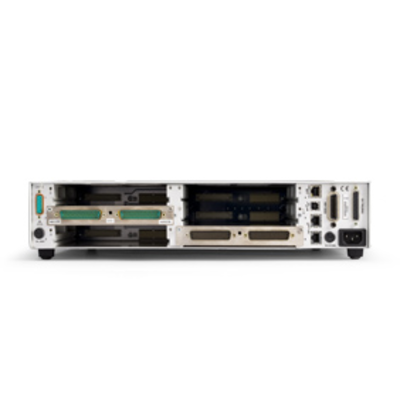

The Series 3700A offers scalable, instrument grade switching and multi-channel measurement solutions that are optimized for automated testing of electronic products and components. The Series 3700A includes four versions of the Model 3706A system switch mainframe along with a growing family of plug-in switch and control cards. When the Model 3706A mainframe is ordered with the high performance digital multimeter, you receive a tightly integrated switch and measurement system that can meet the demanding application requirements in a functional test system or provide the flexibility needed in stand-alone data acquisition and measurement applications. The Model 3706A system switch with high performance digital multimeter (DMM) contains six slots for plug-in cards in a compact 2U high (3.5 inches/89mm) enclosure that easily accommodates the needs of medium to high channel count applications. When fully loaded, a mainframe can support up to 576 two-wire multiplexer channels for unrivaled density and economical per channel costs. The high performance multimeter provides a tightly integrated switch and measurement system that meets the demanding application requirements in a functional test system or provides the flexibility needed in stand-alone data acquisition and measurement applications.

• Six slot system switch mainframe with optional high performance multimeter
• Multi-processor architecture optimized for high throughput scanning and pattern switching applications
• Remote PC control via Ethernet, USB, and GPIB interfaces
• Up to 576 two-wire or 720 one-wire multiplexer channels in one mainframe
• Up to 2,688 one-pole matrix crosspoints in one mainframe
• Embedded Test Script Processor (TSP®) offering unparalleled system automation, throughput, and flexibility
• TSP-Link Technology master/slave connection provides easy system expansion and seamless connection to Series 2600 and 2600B SourceMeter®SMU instruments
• Capable of over 14,000 readings per second to memory with optional high performance multimeter
• LXI Class B Version 2 with embedded Web browser interface for test setup, maintenance, and basic application control

Optional Plug-In Cards:

• Model 3720 Dual 1x30 Multiplexer Card (auto CJC with 3720-ST)
• Model 3721 Dual 1x20 Multiplexer Card (auto CJC with 3721-ST)
• Model 3722 Dual 1x48, High Density, Multiplexer Card
• Model 3723 Dual 1x30, High Speed, Reed Relay Multiplexer Card
• Model 3724 Dual 1x30 FET Multiplexer Card (60 differential channels, automatic CJC with 3724-ST accessory)
• Model 3730 6x16, High Density, Matrix Card
• Model 3731 6x16 High Speed, Reed Relay, Matrix Card
• Model 3732 Quad 4x28, Ultra-High Density, Reed Relay Matrix Card
• Model 3740 32-channel Isolated Switch Card
• Model 3750 Multifunction Control Card (40 digital I/O bits, 2 analog output channels, and 4 counters)
