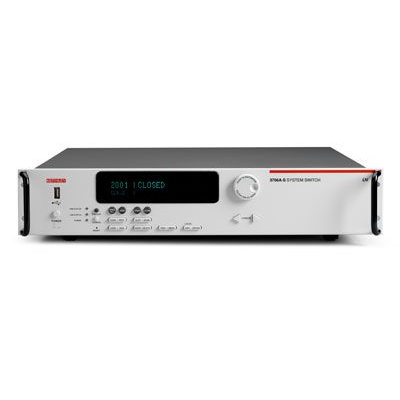

The Series 3700A offers scalable, instrument grade switching and multi-channel measurement solutions that are optimized for automated testing of electronic products and components. The Series 3700A includes four versions of the Model 3706A system switch mainframe along with a growing family of plug-in switch and control cards. When the Model 3706A mainframe is ordered with the high performance multimeter, you receive a tightly integrated switch and measurement system that can meet the demanding application requirements in a functional test system or provide the flexibility needed in stand-alone data acquisition and measurement applications.The Model 3706A-S switch mainframe contains six slots for plug-in cards in a compact 2U high (3.5 inches/89mm) enclosure that easily accommodates the needs of medium to high channel count applications. When fully loaded, a mainframe can support up to 576 two-wire multiplexer channels for unrivaled density and economical per channel costs.

• Six slot system switch mainframe with optional high performance multimeter
• Multi-processor architecture optimized for high throughput scanning and pattern switching applications
• Remote PC control via Ethernet, USB, and GPIB interfaces
• Capable of over 14,000 readings per second to memory with optional high performance multimeter
• Up to 576 two-wire or 720 one-wire multiplexer channels in one mainframe
• Up to 2,688 one-pole matrix crosspoints in one mainframe
• Embedded Test Script Processor (TSP) offering unparalleled system automation, throughput, and flexibility
• TSP-Link master/slave connection provides easy system expansion and seamless connection to Series 2600 and 2600A SourceMeter instruments.
• LXI Class B Version 2 with embedded Web browser interface for test setup, maintenance, and basic application control
