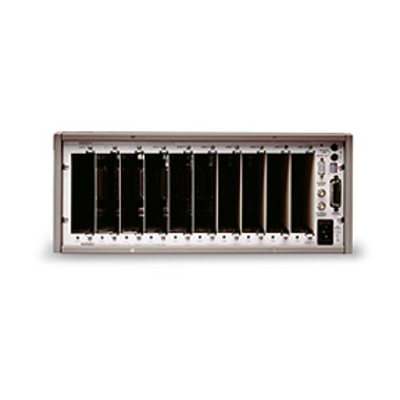

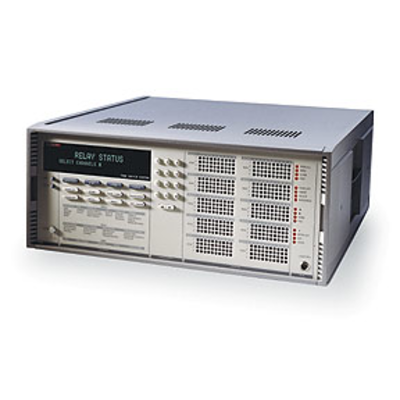

The Model 7002 Switch System is a 10-slot mainframe that supports up to 400 2-pole multiplexer channels or 400 matrix crosspoints. The front panel includes a unique interactive display of channel status for quick programming. Scanning speeds of up to 165 channels per second are possible with the high density switch cards. The wide selection of more than 30 different switch cards makes the 7002 one of the most flexible switching mainframes available.

• Interactive channel status display
• Optional light pen for front panel programming
• Integrates easily with DMM and SourceMeter® SMU instruments
• Full channel status display
• 10 card slots
• Supports 17 switch/control cards

• Model 7002-RMK-1 Fixed Rack Mount Kit (for Model 7002)
• Model 7002-RMK-2 Slide Rack Mount Kit (for Model 7002)
• Model 7007-1 Double Shielded, Premium GPIB Interface Cable, 1m (3.3ft) (for GPIB Interconnect)
• Model 7007-2 Double Shielded, Premium GPIB Interface Cable, 2m (6.6ft) (for GPIB Interconnect)
• Model 7078-PEN Programming Light Pen (for Models 707A, 708A, 7002)
• Model 8501-1 Trigger Link Cable, DIN-to-DIN, 1m (3.3ft) (for Models 6517A, 6517B, Series 2400, KPC-TM, Trigger Link Inputs)
• Model 8501-2 Trigger Link Cable, DIN-to-DIN, 2m (6.6ft) (for Models 6517A, 6517B, Series 2400, KPC-TM, Trigger Link Inputs)
• Model 8503 Trigger Link Cable, DIN-to-Dual BNC, 1m (3.3ft) (for Models 2000, 2010, Series 2400, 6517A, 6517B, Trigger Link Inputs)
• Model 8505 Male DIN to 2-female DIN Y Adapter cable, 0.3m (1ft) (for Trigger Link)
• Model KPCI-488LPA IEEE-488.2 Interface Board for the PCI Bus
