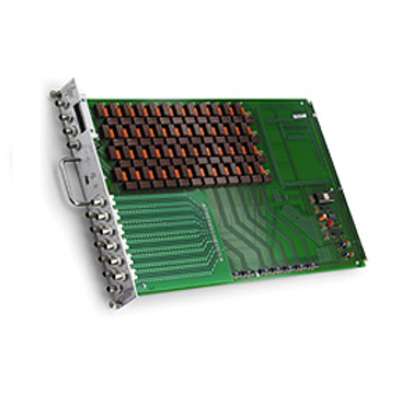

The Model 7173-50 combines high frequency performance with excellent DC switching characteristics. It provides 200MHz bandwidth in a 4x12 configuration. Offset voltage is <15µV per crosspoint, and offset current is <200pA. The combined AC and DC capabilities make it ideal for mixed signal applications where both high frequency and low level DC signals must be switched—for example, testing ADCs or DACs, which involves measuring both digital and analog signals.

• 200MHz bandwidth
• <2ns rise time
• 50Ω impedance
• <15μV offset
• <200pA offset current
• 2-pole switching
• Compatible with Models 707A, 707B, 708A, and 708B
