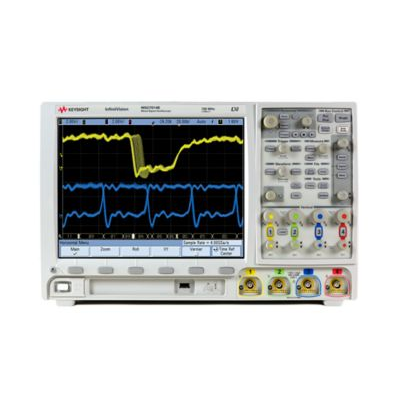

Keysights InfiniiVision MSO7014B, equipped with a 12.1 XGA display, comes in a quiet package that is just 6.5 deep, and weighs only 13 pounds. With the worlds fastest uncompromised update rate, up to 100,000 waveforms per second, see subtle signal detail and infrequent events other scopes miss. A wide range of application packages provide rapid measurement insight.

Lab scope performance

100 MHz bandwidth 2 GSa/s sample rate

4 analog plus 16 digital channels

Standard 8 Mpts MegaZoom III deep memory

Automatic Search and Navigate

Engineered for the best signal visibility

12.1 XGA display with 256 intensity levels shows subtle signal detail

Industrys-fastest uncompromised update rate of up to 100,000 waveforms/sec displays infrequent events

Wide range of application packages

Segmented memory

Mask Testing

Serial decode including: I2C, SPI, CAN, LIN, FlexRay, RS-232/UART, I2S, and MIL-STD 1553

MATLAB software available directly from Keysight for making your own custom measurement and analysis routines, user-defined filters, or instrument applications. MATLAB software for Keysight oscilloscopes

View online videos to see for yourself

See the 7000 Series scopes in action video demo
