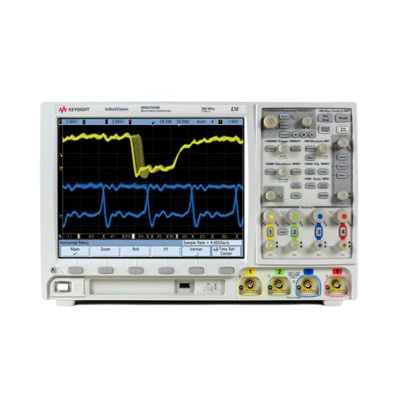

Keysight&rsquo s InfiniiVision DSO7034B, equipped with a 12.1&rdquo XGA display, comes in a quiet package that is just 6.5&rdquo deep, and weighs only 13 pounds. With the world&rsquo s fastest uncompromised update rate, up to 100,000 waveforms per second, see subtle signal detail and infrequent events other scopes miss. A wide range of application packages provide rapid measurement insight.

Lab scope performance

350 MHz bandwidth 2 GSa/s sample rate

4 analog plus 16 digital channels

Standard 8 Mpts MegaZoom III deep memory

Automatic Search and Navigate

Engineered for the best signal visibility

12.1&rdquo XGA display with 256 levels of intensity shows subtle signal detail

Industry&rsquo s-fastest uncompromised update rate of up to 100,000 waveforms/sec displays infrequent events

Wide range of application packages

Segmented memory

Mask Testing

Serial decode including: I2C, SPI, CAN, LIN, FlexRay, RS-232/UART, I2S, and MIL-STD 1553

MATLAB software available directly from Keysight for making your own custom measurement and analysis routines, user-defined filters, or instrument applications. MATLAB software for Keysight oscilloscopes

View online videos to see for yourself

See the 7000 Series scopes in action video demo
