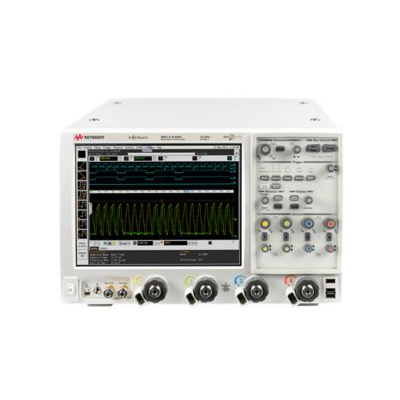

When you&rsquo re deploying emerging high speed serial bus technology identifying spectral content of wide-bandwidth RF signals or analyzing transient physical phenomena, you need the truest representation of your signals under test. The Keysight Infiniium 90000 X-Series oscilloscopes are engineered for 33 GHz of true analog bandwidth that delivers. By investing in a proprietary integrated circuit process, Keysight has enabled high-frequency capability while yielding the industry&rsquo s lowest noise and jitter measurement floor, giving the 90000 X-Series true analog hardware performance of up to 33 GHz. With its 13 GHz of true analog bandwidth, the MSOX91304A is ideal for directly digitizing signals well into the Ku and X band as well as validating SAS-2, DDR4, DDR3 , PCI Express gen2, and other high-speed digital busses. It even analyzes 40 GBE complex optical signals with ease.

The accompanying probing system offers browsing to 30 GHz with a full range of accessories rated to 28 GHz and the ability to upgrade bandwidth in the future. Purchase Keysight&rsquo s N5442A to use the full array of Keysight&rsquo s InfiniiMax II probing system with the MSOX91304A. PrecisionProbe is the only tool available on an oscilloscope that allows for channel characterization and compensation.

The MSOX91304A features 16 fully-integrated, time-aligned digital channels that give you insight into timing relationships and allow precise triggering. The MSOX91304A has special modes designed to help with debug and validation of memory systems.

The world&rsquo s fastest real-time oscilloscope

13 GHz true analog bandwidth, upgradable to 33 GHz

80 GSa/s sample rate 2 channels / 40 GSa/s sample rate 4 channels

Industry deepest memory with up to 2 Gpts memory with 20 Mpts per channel standard (50 Mpts per channel with DSA option)

Industry-leading 16 channels with up to 20 GSa/s timing resolution

The highest real-time scope measurement accuracy

13 GHz oftrue analog bandwidth provides better spectral analysis of transients and wide-bandwidth RF signals

Industry&rsquo s lowest oscilloscope noise floor (1.30 mVrms at 13 GHz at 50 mV/div)

Lowest jitter measurement floor (
