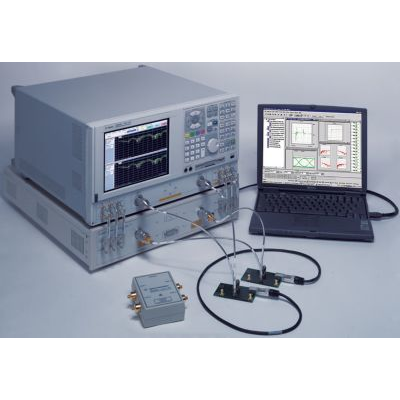

The Keysight physical layer test system provides the highest accuracy and most comprehensive approach for characterizing single-ended or differential physical layer components such as high-speed backplanes, cables, connectors, packages, and controlled impedance traces on circuit boards.The physical layer test system includes: E8362B PNA series vector network analyzer with Option 014 N4419B 20 GHz S-Parameter test set N1930A physical layer test system softwareNote: Each component of physical layer test systems is available separately if you already own a compatible vector network analyzer and would like to build a system. Please refer to the product overview for details.

Powerful analysis tools include time-domain reflectometry (TDR), time-domain transmission (TDT), frequency-domain, and eye diagramsComplete characterization of single-ended, differential, common-mode, and mode-conversion of your deviceE8362B PNA series vector network analyzer with Option 014Advanced calibration techniques remove the errors from the measurement equipment and cables and set the reference plane at the device under test N4419B 20 GHz S-Parameter test set N1930A physical layer test system software
