Lightwave Component Analyzer Software Version 2.3

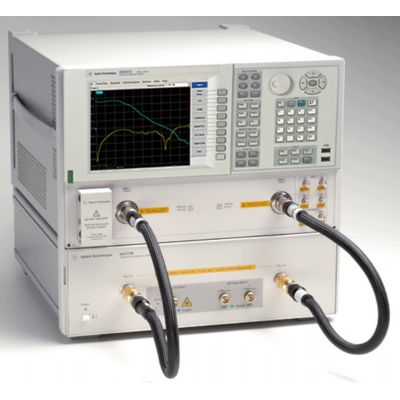

With up to 67 GHz modulation frequency range and excellent accuracy, the N4373C supports S-parameter test of electro-optical components for IEEE 802.3ba transmission systems, as well as Radio over Fiber (RoF) and aerospace and defense (A&D) applications in the 60 GHz frequency range.

Fastest time to market can be achieved by testing electro-optical S-Parameter with the N4373C and lets you focus on developing your high performance components.

Quick and easy measurement setup increases productivity as time-consuming electrical calibration steps are automated and optical calibration by the operator is no longer necessary.

Additional Benefits:

Balanced measurements now up to 67 GHz (new)

External optical source input for test at all wavelength between 1300 and 1600 nm

1310 & 1550 nm selectable internal transmitter to support IEEE 802.3ba component test

Built-in average power meter for fast transmitter power test

User selectable optical transmitter output power helps to adapt to target test conditions

More then 10 times faster than 86030A speeds up productivity

Absolute frequency response accuracy

1.2 dB @ 50 GHz (typ)

1.8 dB @ 65 GHz (typ)

Relative frequency response accuracy

0.8 dB @ 50 GHz (typ)

1.3 dB @ 65 GHz (typ)

Noise floor

-60(55) dB(A/W) for O/E measurements @ 50(65) GHz

-64(59) dB(W/A) for E/O measurements @ 50(65) GHz
