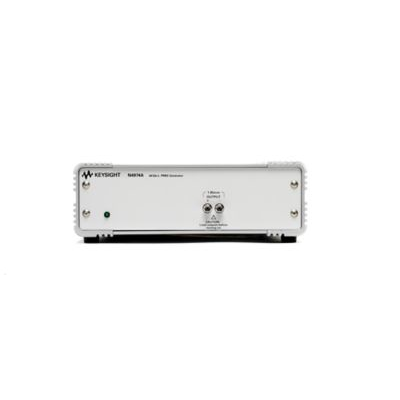

The Keysight Technologies N4974A PRBS generator 44 Gb/s source is a fully self-contained pattern generator operating over the 22 to 44 Gb/s datarate range. The product contains an internal 19.9 GHz oscillator to supply the half rate clock source for 40 Gb/s operation. Ordering options substitute the correct oscillator frequency for 28 or 25 Gb/s operation. The product allows the user to supply a half rate clock externally to operate at any data rate between 22 and 44 Gb/s.

Applications

Ultra-high speed communications components testing

Stimulus response measurements for 40 Gb/s components

Backplane signal integrity

Optical transceiver characterization

Operates over 22 to 44 Gb/s data rates

Internal oscillator for 40, 28, 25.78 Gb/s

Excellent eye qualityrise/fall time 8 ps

27-1, 215-1, 231-1 prbs patterns

1000 mV differential output

Ultra low noise trigger for precision time base applications

Pattern trigger output
