Worlds widest range of single-connection measurement applications

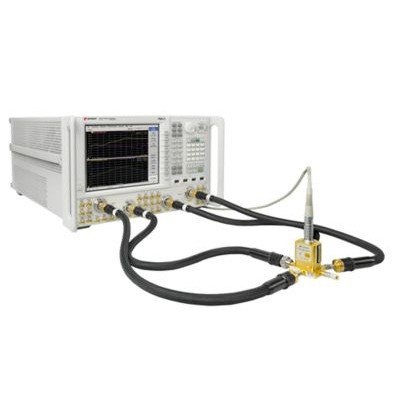

The PNA-X network analyzer is the worlds most integrated and flexible single-connection microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. You can choose from five frequency models to meet your specific device test needs: 8.5 (N5249A) 13.5 (N5241A), 26.5 (N5242A), 43.5 (N5244A), 50 (N5245A), and 67 GHz (N5247A). The PNA-X provides unrivaled configurability with a built-in second source, combiner, and internal signal-routing switches.

Replace racks and stacks
Reduce your equipment count by replacing racks and stacks of equipment with the PNA-X.

Applications:

S-parameters (CW and pulsed)

Noise figure

Gain compression

Intermodulation and harmonic distortion

Conversion gain/loss

True-differential stimulus

Millimeter-wave

Nonlinear waveform and X-parameter* characterization

Antenna test

PNA Firmware, Upgrade and Support

10 MHz to 67 GHz

2- or 4-ports with two built-in sources

Enables 4-port 110 GHz single-sweep solution

110 dB system dynamic range, 100,001 points,200 channels, 15 MHz IF bandwidth

High output power (+10 dBm at 67 GHz) and a wide power sweep range (40 dB)

0.1 dB receiver compression of +11 dBm at 67 GHz
