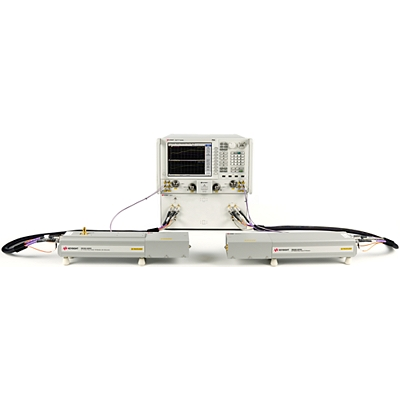

The N5251A is a single sweep 10 MHz to 110 GHz vector network analyzer solution based on the new N5227A PNA. It uses the N5261/62A test controller to provide either a 2- or 4-port measurement solution. The N5251A replaces the existing N5250C millimeter wave solution.

The N5251A utilizes the same frequency extenders used by theN5250Cand is orderable as a single product number that will include the PNA test set controller, broadband frequency extenders, and all the required cables.

This solution is pre-configured with broadband extenders that have built-in bias-tees with options to select either 2- or 4-ports.

You can find more information aboutmillimeter-wave controllersunder the Options & Accessories/Related Products tab.

Frequency range: 10 MHz to 110 GHz

2- or 4-Port configurations

Built in Kelvin bias tee on combiners which brings the bias signal close to the device being measured

Full power control over the entire frequency range going down to as low as-50 dBm

Supports true differential measurements across the frequency range

Support for scalar mixer measurements

Integrated pulse measurement capability

Support the power spectral measurements
