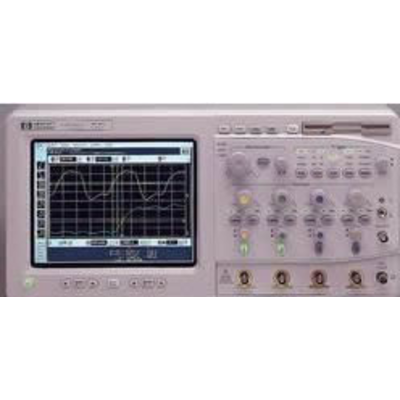

The 54825N is a 500MHZ, 4 channel digital oscilloscope from Agilent. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.

Bandwidth: 500 MHz
Channels: 4
digital oscilloscope
Sample Rate: 2 GSa/s acquisition
500ps/div sweep speed
Simple,analog-like front panel
Graphical user interface
Guided high-performance measurements
Drag and drop waveform measurement
24 stored waveform measurements and procedures
High resolution color display

040 8 Mpts on half the acquisition channels (interleaved)
or 4 Mpts on each acquisition channel
080 16 Mpts on half the acquisition channels (interleaved)
or 8 Mpts on each acquisition channel
N2845A After-purchase memory upgrade, 2 Mpts/ch to 4 Mpts/ch
N2846A After-purchase memory upgrade, 2 Mpts/ch to 8 Mpts/ch
N2847A After-purchase memory upgrade, 4 Mpts/ch to 8 Mpts/ch
