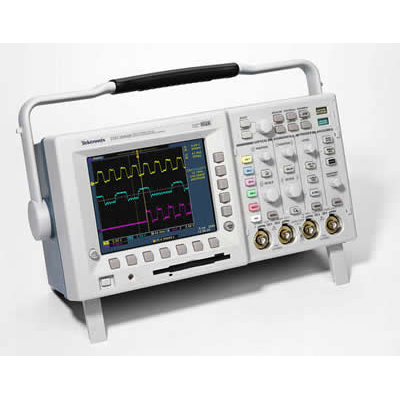

The TDS3000B Series packs the power of a DPO, digital real-time (DRT) sampling technology, WaveAlert waveform anomaly detection, OpenChoice documentation and analysis solutions, and five application-specific modules into a lightweight, battery-capable design.

A DPO Provides a Greater Level of Insight into Complex Signals

The TDS3000B Series DPO delivers 3,600 wfms/s continuous waveform capture rate to capture glitches and infrequent events three times faster than comparable oscilloscopes. Some oscilloscope vendors claim high waveform capture rates for short bursts of time, but your oscilloscope needs to deliver these fast waveform capture rates on a continuous basis _ saving minutes, hours, or even days by quickly revealing the nature of faults so advanced triggers can be applied to isolate them.

In addition, the TDS3000B DPO’s real-time intensity grading highlights the details about the “history” of a signal’s activity, making it easier to understand the characteristics of the waveforms you’ve captured.

100 to 500 MHz Bandwidths
5 GS/s Maximum Real-time Sample Rate, with sin(x)/x Interpolation
3,600 wfms/s Continuous Waveform Capture Rate
2 or 4 Channels
Full VGA Color LCD
25 Automatic Measurements
FFT Standard
Multi-language User Interface
QuickMenu Graphical User Interface for Easy Operation
WaveAlert Automatic Waveform Anomaly Detection
OpenChoice Solutions Simplify Instrument Control, Documentation, and Analysis
e*Scope Web-based Remote Control
Built-in Ethernet port
GPIB, RS232, VGA
TDSPCS1 OpenChoice Software
WaveStar Software
Integration with Third-party Software
Application Modules for Specialized Analysis
Advanced Analysis Module
Limit Testing Module
Telecommunications Mask Testing Module
Extended Video Module
601 Serial Digital Video Module
Optional Internal Battery Operation up to 3 Hours Without Line Power
Plug-in Printer for Portable Documentation of Results
TekProbe Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units
