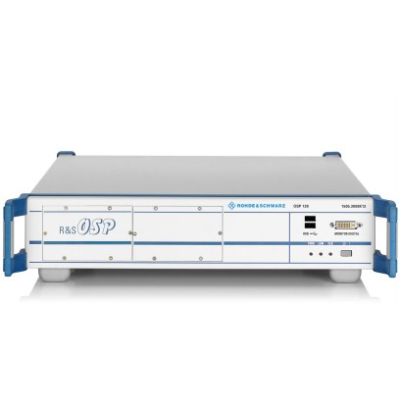

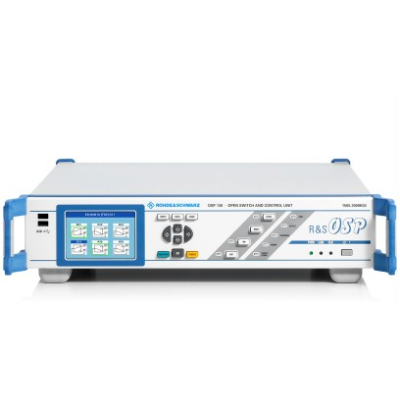

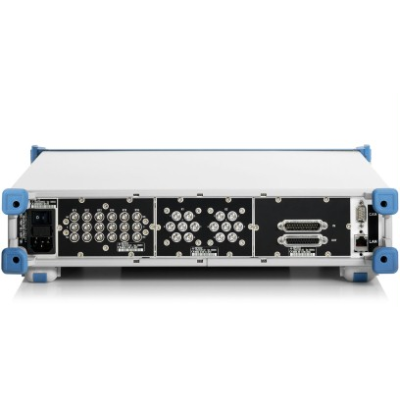

The modular R&S OSP open switch and control platform can be used to perform RF switch and control tasks. A number of optional modules make the R&S OSP ideal for a wide range of applications from simple RF switch functions to automatic path switchover in complex RF test systems such as EMC systems.

Compact size requiring little space
Optimal configuration by selecting the appropriate switch and control modules
Plug & play makes complex installation superfluous
Path control allows easy, reliable and independent switching of different switching paths using only one command
Easy generation of switching configurations owing to intuitive operating menu
Flexible system integration via Ethernet interface
Operation on the instrument ensures fast and direct access

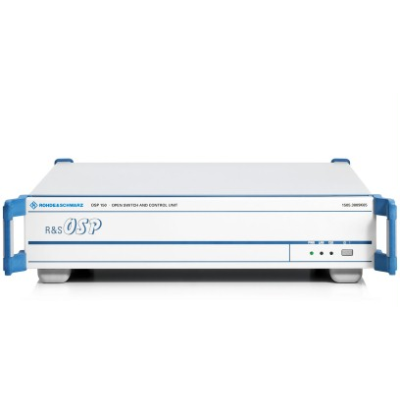

The R&S OSP150 extension unit allows the range of functions to be expanded as necessary
Special modules for EMC applications

R&S OSP : Open Switch and Control Platform
R&S OSP-B101 : RF Switch Module
R&S OSP-B101L : RF Switch Module
R&S OSP-B102 : RF Switch Module
R&S OSP-B102L : RF Switch Module
R&S OSP-B111 : RF Switch Module
R&S OSP-B112 : RF Switch Module
R&S OSP-B116 : RF Switch Module
R&S OSP-B119 : RF Switch Module
R&S OSP-B107 : RF Switch Module
R&S OSP-B127 : RF Switch Module
R&S OSP-B128 : RF Switch Module
R&S OSP-B121 : RF Switch Module
R&S OSP-B121H : RF Switch Module
R&S OSP-B122 : RF Switch Module
R&S OSP-B123 : RF Switch Module
R&S OSP-B124 : RF Switch Module
R&S OSP-B125 : RF Switch Module
R&S OSP-B126 : RF Switch Module
R&S OSP-B129 : RF Switch Module
R&S OSP-B106 : RF Switch Module (double module width)
R&S OSP-B131 : RF Switch Module
R&S OSP-B132 : RF Switch Module
R&S OSP-B136 : RF Switch Module
R&S OSP-PM-I : Passive Module
R&S OSP-B104 : EMS Module
R&S OSP-B114 : EMS Module
R&S OSP-B103 : Digital I/O Module
R&S OSP-B158 : Digital I/O Module
R&S OSP-B108 : Multiplexer Module
R&S OSP-Z101 : CAN Bus Cable, 0.5 m
R&S OSP-Z102 : CAN Bus Cable, 5 m
R&S OSP-Z103 : CAN Bus Y Cable, 0.5 m
R&S ZZA-211 : 19’’ Rack Adapter
