C860 QUAD OTDR and Certification Test Kit

The AFL C860 Certification Test Set combines superior efficiency
and functionality in a test kit designed for performing length,
loss (Tier 1) and OTDR (Tier 2) testing on both multimode and
single-mode fibers.
Users can reference both single-mode and multimode fibers at the
start of their test day, and switch back and forth between
single-mode and multimode loss or OTDR testing without the need to
change equipment/modules or to re-reference. Save time and money
when performing two-fiber loss testing in two directions and OTDR
tests for each fiber with one trip. Select an ISO/TIA/EN standard
and one or more applications or user created rules to certify the
fibers to for each test. Technicians can communicate during
certification testing using built-in text messaging functionality.
Cut test time by as much as 50% when performing tests on fiber
systems with multimode and single-mode fibers, allowing users to
bid more competitively and win more jobs.
Setup pass/fail criteria for the Tier 1 loss tests and pass/fail
criteria for the events in Tier 2 tests, assuring the fibers meet
ISO/TIA standards, applications or customer expectations before
leaving the job site.

The C860 comes complete with TRM (Test Results Manager)
sertification reporting software at an attractive price/performance
ratio.

More Features

OTDR dynamic range: 22 dB (MM); 26 dB (SM)

Integrated OPM, OLS, and VFL (650 nm)

OLS sources: LED – 850/1300 nm, Laser – 1310/1550 nm

Full Auto, Expert, Real-Time OTDR test modes

Large transflective (indoor/outdoor) touch screen display

Tool-free, switchable test port adapters

Rechargeable Li-Ion battery (>8 hours) or AC power

USB host and function ports

Bellcore (GR-196) .SOR file format

Internal (1000s tests) and USB storage

Wave ID detect if used with AFL Wave ID series light
sources

Windows compatible software

More Applications

Tier 1 and Tier 2 testing of premise networks

Bi-directional two fibers and single fiber test capable

Perform Pass/Fail Event and Link measurements

Find faults using integrated Visual Fault Identifier

Splice verification

Measure loss and length of fiber links

Certify fibers using Pass/Fail criteria of industry standards,
applications and user-defined thresholds

Create professional certification reports

Ordering Information

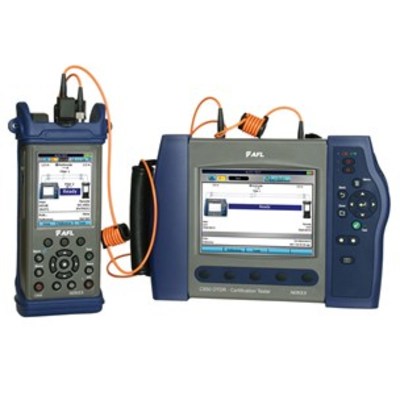

Each kit includes one hand-held C840 QUAD Certification Tester,
one compact C850 QUAD OTDR/OLTS, USB Flash drive, PC software for
OTDR trace analysis and certification or OPM loss reporting, (2) AC
adapters, switchable test port adapters, and accessories.

Prepaid Calibration Plans

Integrated Optical Loss test set, QUAD OTDR and VFL for SM and
MM testing

Touch and Test user interface with comprehensive job file
naming

Automatic Pass/Fail analysis (TIA/ISO/EN)

Bi-directionally measure loss and length of fibers

Show More
Applications:

Certification of multimode and single-mode point-to-point fiber
links

Tier 1 Testing: Loss and Length measurements

Tier 2 Testing: OTDR measurements

Create certification acceptance reports
