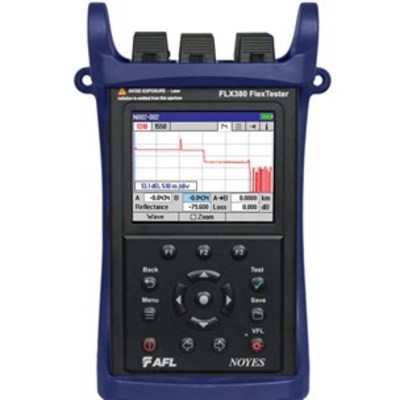

FLX380 FlexTester PON-optimized Micro OTDR
The AFL Test & Inspection FLX380 FlexTester is the world’s smallest, lightest, most complete single-mode fiber optic test set. It combines high-performance, PON-optimized, multi-wavelength OTDR/PON OTDR, OLS, OPM, VFL and PON Power Meter in a rugged, hand-held package.

The FLX380 FlexTester offers an unmatched combination of optical test functions, ease-of-use, portability and value, including:
41 dB dynamic range
best-in-class event, attenuation, and PON dead zones
AFL’s unique ServiceSafe Live PON OTDR
Fast, error-free loss-testing using Wave ID synchronization.
Over 12 hours continuous testing without battery replacement or recharge
Integrated 50 m launch fiber.
The handheld FLX380 FlexTester is offered in three models to best suit your application requirements:
FLX380-303: Most complete high-performance test set for verifying both in-service (live) and out-of-service FTTx PONs. Includes ServiceSafe live PON detection, integrated PON power meter and 1625 nm filtered live PON OTDR, all from a single port.
FLX380-302: 1310/1490/1550 nm OTDR, OLS, OPM and VFL for complete out-of-service testing at all FTTx PON wavelengths.
FLX380-300: Lowest cost, high-performance, all-in-one 1310/1550 nm OTDR, OLS, OPM and VFL for out-of-service installation testing or troubleshooting both FTTx PON and point-to-point fiber optic networks.
The FLX380 FlexTester user interface provides modes suitable for both novice and expert users. It features a top-down menu structure which is both easy to learn and a pleasure to use. User interface software supports over a dozen languages including English, Chinese (Simplified and Traditional), French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian and Spanish.

Over 1000 OTDR test results may be saved in industry-standard .SOR file format. Stored OTDR and OPM results may be transferred to PC via USB port for viewing, analysis, and professional report generation using the included Windows compatible Test Results Manager (TRM) software.

FLX380 FlexTester Configuration Options
The FLX380 FlexTester is available in two different kit options:

FlexTester PRO Test & Inspection Kit – Combines user-specified FLX380 FlexTester with standard accessories plus FOCIS Fiber Optic Connector Inspection System and optical connector cleaning supplies into a rugged, waterproof hard-shell carry case.
FlexTester with Soft Carry Case – Combines user-specified FLX380 FlexTester with standard accessories and One-Click Cleaner into a convenient, lightweight soft carry case.
All FLX380 kits include rechargeable, replaceable Li-Ion battery pack, AC charger with country-specific power cord, (1) SC and (1) FC adapter for the OTDR/OLS port, (2) 2.5 mm Universal adapters for the OPM and VFL ports, dust caps for all ports, USB cable, TRM Test Results Manager software, and a quick reference guide in any one of the supported languages.

Features:
Standard OTDR, live PON OTDR, PON power meter – from one port!
41/38/38/37 dB dynamic range @ 1310/1490/1550/1625 nm
0.8/3.5 m event/attenuation dead zone, 40 m PON dead zone
ServiceSafe live PON detection – prevents OTDR from disrupting service on live PON, while allowing 1625 nm out-of-band OTDR test
Applications:
Certify new FTTx PON or point-to-point fiber installations
Troubleshoot live FTTx PONs including automatic live PON detection, PON power measurement and live PON OTDR test
Complete multi-wavelength end-to-end loss tests faster and eliminate setup errors using AFL’s Wave ID
Generate stable optical source signals (CW, Wave ID or tones)

The FLX380 FlexTester is available in two different kit options:

FlexTester PRO Test & Inspection Kit – Combines user-specified FLX380 FlexTester with standard accessories plus FOCIS Fiber Optic Connector Inspection System and optical connector cleaning supplies into a rugged, waterproof hard-shell carry case.
FlexTester with Soft Carry Case – Combines user-specified FLX380 FlexTester with standard accessories and One-Click Cleaner into a convenient, lightweight soft carry case.
