M210e Hand-held OTDR with OPM, VFL, &Touch and
Test Intuitive User Interface

AFL Test
& Inspection M210e OTDR from AFL combines ease of use
(Touch and Test) andmulti-functionality in a field
rugged, hand-held package. Integrated OTDR and OPM functionality
and inspection capability reduce setup and testing time and
simplify documentation; reducing testing and administration
costs.

dynamic ranges of 26 dB, the M210e is ideal for testing,
troubleshooting and documenting enterprise, LAN/WAN, campus and
military single-mode and multimode (62.5 and 50 micron)fiber
networks.

The latest member of the AFL M200 product family combines market
proven reliability with expanded capabilities. Launched in 2006,
the M200 is a 2012 Test of Time finalist, and used by thousands of
AFL customers.

M210e Multifunction OTDR Features:

Built in Optical Power Meter – Easily test and store both Tier
1 and Tier 2 results in one tester

Built in Visual FaultLocator (VFL) enables technicians to
quickly identify fiber faults within OTDR dead zone

Dynamic Range covers longer fiber systems

30 dB Single-mode

26 dB Multimode

Field proven, compact, rugged product packaging is designed for
bothoutside plant use and cramped inside plant
environments.

M210e Touch and Test supports users of all
levels

Full Auto Mode-Connect and press test.M210e
will detect fiber and set recommended test parameters.Perfect
for novice technicians or repair techs quickly looking for faults
on fiber spans of unknown length.

Auto-Once Mode-Designed for testing cables with
multiple fibers.M210e performs a full auto test on the first
fiber and retains recommended settings allowing fast expert-speed
testing of subsequent fibers.

Expert Mode-Provides access to testing parameters
for experienced users to setup optimal testing scenarios for
specific networks.

Real-Time Mode-Continuous OTDR operation and display
update allows users to dynamically change networks while monitoring
OTDR trace results.Example: relaxing fiber bends to reduce
attenuation loss.

Top menu level touch screen access to major test modes allow
users to test networks faster- no time wasted with complicated menu
structures. The M210e provides one-touch access to OTDR
andOPMtest modes and DFS inspection mode when
enabled.

M210e Touch and Test Features

SetPass/Fail thresholds compliant
with TIA/ISO/user-defined values to alert test operators of failing
or marginal events.

New Job creation editor with detailed
job/file naming allows users to quickly createfile for
storing results with flexibility for custom Job, Route, Cable,
Fiber file naming.

Structured file management to logically and easily store test
results.

Results Manager allows
in-unitreview saved test resultsand quick selection of
previously created jobs for storing current job test results.

Access general settings including Date/Time/Number format
options and an Auto Off feature.

OTDR settingsenhanced event measurements with various
manual LSA methods available in Expert mode.

Asimple toggle function enables fast and logical storage
of trace, Loss andinspectionresults from both ends of a
fiber/cable.

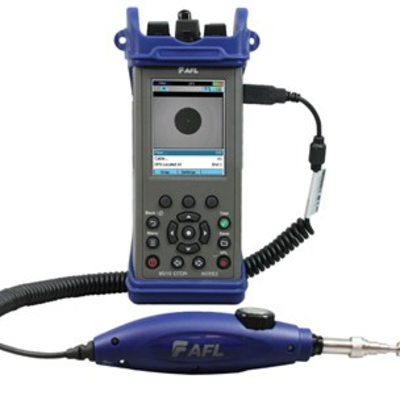

The M210e supports visual inspection per IEC
61300-3-5visual inspection practices using
aAFL Test
& Inspection DFS1 Digital FiberScope providing the user the
ability to view and document connector end-face images with their
OTDR traces andloss/power measurements

Touch and Test capabilities simplify the user experience; reduce
training time and testing errors enabling even novices to get the
job done quickly and accurately.

Data Storage and Reporting Capabilities (TRM)

Thousands oftest results may be stored internally or on
the supplied USB drive. Test results are transferable via USB cable
or USB drive to a computer for viewing, printing, and analyzing
with the supplied Windows compatible software – TRM (Test Results
Manager). Acceptance reports generated using TRM can include OTDR
traces with summary and event information with or without pass/fail
indication, Event Maps, Loss/Power measurement tables and end-face
images.

Please click
hereto learn more about TRM.

With a full set of testing and troubleshooting tools including
OTDR, OPM, VFL and end-face inspection capability the M210e is a
complete solution for fiber network owners and installers.

Supported Languages

English

French

German

Italian

Polish

Portuguese

Spanish

Additional Features:

Internal storage (>1000 OTDR traces in standard .SOR
format)

New crisp bright(indoor/outdoor) color touchscreen
display

Transfer test results to a PC via USB

Easy to use and learn

Tool-free, switchable test port adapters

Single-mode and multimode models with 850/1300/1310/1550
nm wavelength options

Settable Pass/Fail thresholds to standards or user
specified values

Test Results Manager, TRM reporting software for
analyzing results, documenting networks and creating acceptance
reports

Ordering Information

The M210e is offered in three optical models: multimode,
single-mode and combined as a QUAD multimode/single-mode.(See
data sheet for ordering information). The M210e micro OTDR is
available in a softcase with carry handle and shoulder strap or in
a compact rugged transit case and as part of a QUAD Certification
kit or a QUAD Test and Inspection kit. Both soft and hard cases
haveroom to carry the M210e, power cord, fiber rings, and
adapters, cleaning supplies, other accessories and documentation.
The hard case has a full length hinge, pad lock loops, secure snap
latches and O-ring seal to protect the contents from dust and
water.

M210e QUAD Certification Kitis designed for
integrated SM and MM Tier1 and Tier2 testing with fiber end-face
image capture. The M210e stores OTDR traces, loss readings and
end-face images in a logical Job Structure for each fiber. Review
results on the M210e and transfer to a PC for analysis and
acceptance report documentation using included companion Test
Results Manager (TRM) software. In TRM apply standards and
applications to loss readings to assure fibers meet the increasing
bandwidth needs of fiber networks such as 10 GbE. This kit includes
a QUAD M210e, OLS4 LED/Laser Source, DFS1-00-04XU or
DFS1-00-04XADigital FiberScope kit and cleaning accessories
in a compact rugged hard transit case. (Specify DFS-00-04XU
or DFS-00-04XA when ordering)

M210e QUAD Test and Inspection Kitis designed for
performing Tier 2 OTDR testing and troubleshooting and end-face
inspection. This kit includes the QUAD M210e, a DFS1 FiberScope and
cleaning accessories in a compact rugged hard transit case.
(Specify DFS-00-04XU or DFS-00-04XA when
ordering)

Prepaid Calibration Plans

Dynamic Range up to 30 dB

16 hour Li-ion battery

Remote display capable

Touch and Test intuitive user interface
Applications:

Testing and Troubleshooting multimode and single-mode fiber
networks

Tier 1 and Tier 2 Testing and Troubleshooting of enterprise
networks

Document and create acceptance reports with companion PC
software, TRM

Inspection of fiber endfaces using DFS1 Digital FiberScope and
M210e
