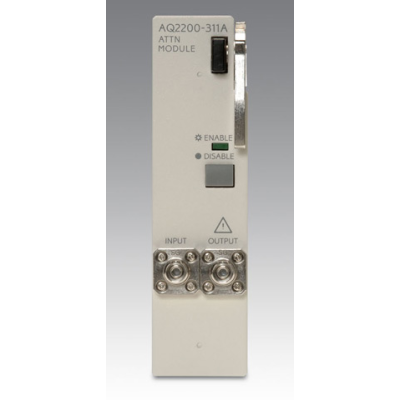

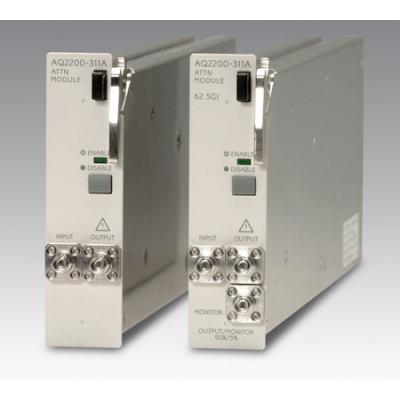

The AQ2200-311A is a variable optical attenuation for the AQ2200 series. When it is installed in an AQ2200 series frame controller, it allows optical output to be attenuated to any value.

Wide attenuation range:

0 to 60 dB (SM version)
0 to 45 dB (MM version)

Wide wavelength range:

1200 to 1700 nm(SM version)
800 to 1370 nm (MM version)

Compatible with SMF or MMF
Low insertion loss: 1.0 dB (typical)
Low polarization dependence loss: 0.1 dBp-p or less

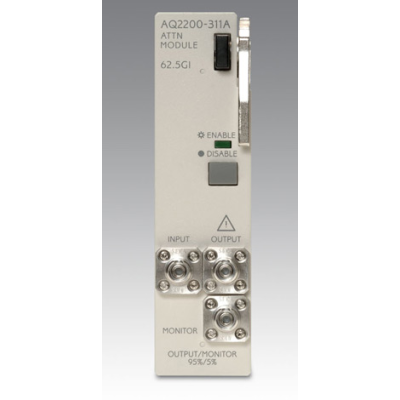

Monitor output (optional)
Configure the desired measurement system by combining AQ2200 Series modules with Yokogawa optical communications measuring instruments
