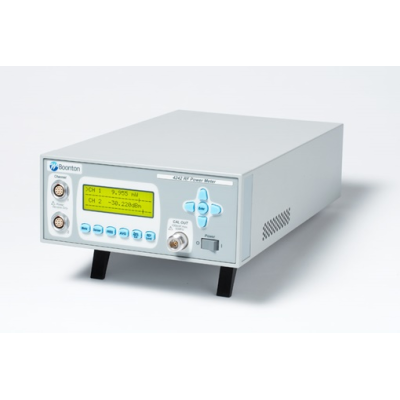

Boonton 4242 RF Power Meter
Product Details
-
Manufacturer: Boonton
-
Model: 4242
-
Description:
Boonton's 4240 Series Power Meters – One or Two Channel, Calibrator Standard, Frequency Range 10kHz to 110GHz, Dynamic Range 90dB, Power Level -70dBm to +44dBm, HP 437 & HP438 Emulation
The 4240 series of CW RF power meters provides the high speed measurement capability needed in a production environment, as well as the simplicity of operation required for bench top use.
-70 dBm to +44 dBm, depending on sensor
90 dB dynamic range, depending on sensor
10 kHz to 40 Ghz measurement range
Single or dual-channel display
>200 measurements per second
Agilent HP 437 & Agilent HP 438,_ and Boonton 4220A & 4230A emulation
Automatically loads sensor data
Simple software control via SCPI language
50 MHz step calibrator
IEEE-488 and RS-232 interfaces standar
-70 dBm to +44 dBm, depending on sensor
90 dB dynamic range, depending on sensor
10 kHz to 40 Ghz measurement range
Single or dual-channel display
>200 measurements per second
Agilent HP 437 & Agilent HP 438,_ and Boonton 4220A & 4230A emulation
Automatically loads sensor data
Simple software control via SCPI language
50 MHz step calibrator
IEEE-488 and RS-232 interfaces standar
| 4241 | Single Channel |
| 4242 | Dual Channel |
| -01 | Rear sensor inputs |
| -02 | Calibrator, rear panel output |
| -30 | Warrenty extended to 3 years |
