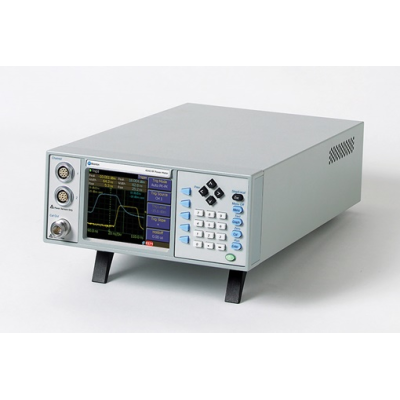

Boonton 4541 Peak Power Meter
Product Details
-
Manufacturer: Boonton
-
Model: 4541
-
Description:
Boontons versatile 4541 (1Ch) and 4542 (2CH) combined Peak / Average Power and Voltage meters are leading edge instruments for most accurate measurements. High dynamic range and an effective time resolution of 200 ps show the greatest signal waveform detail.
The Boonton model 4540 Series RF Power Meter is the instrument of choice for capturing, displaying and analyzing RF power in both the time and statistical domains. Applications include pulsed RF signals such as radar, TDMA and GSM, pseudorandom or noise-like signals such as CDMA, WLAN and WiMAX.
Frequency range 9.9kHz to 40 GHz
Peak power range: -50 to +20 dBm
Average power range: -70 to +44 dBm
Video bandwidth: 70 MHz
Effective time resolution: 200 ps
Effective sampling rate 5 GS/sec
Fast statistical analysis including CCDF
| Sensor Inputs | |
|---|---|
| RF Channels | 1 or 2 |
| RF Frequency Range | 9.9 kHz to 110 GHz* |
| Peak Pwr range | -50 to +20 dBm* |
| CW Pwr range | -70 to +44 dBm* |
| Acquisition and Measurement System | |
| Time resolution | 0.2 ns |
| A/D Converter | 14 bit |
| DSP | 32 bit floating point |
| Trigger | |
| Ext Trig range, impedance | ±5V, 1 Mohm |
| Min trig pulse width | 15 ns |
| Max trig rate | 30 MHz |
| Calibrator Source | |
| Internal Calibrator | 50.025 MHz, CW -60 to +20 dBm |
| * Sensor Dependent, Calibrator Dependent | |
| Pulse Mode Operation (Automatic) | |
| Pulse width | Pulse rise-time |
| Pulse fall-time | Pulse period |
| Pulse repetition frequency | Pulse duty cycle |
| Pulse off-time | Peak power |
| Pulse “on” power | Pulse overshoot (dB or %) |
| Waveform Average power | Top level power (IEEE spec) |
| Bottom level power (IEEE spec) | Edge delay |
| Edge skew (2 channel instruments only) | |
| Marker Measurements | |
| Markers (vertical cursors) Settable in time relative to the trigger position |
|
| Markers independently Average, minimum, peak power at a single time offset |
|
| Pair of Markers Average, minimum, peak power over the interval between markers, power ratio between markers |
|
4541 Peak Power Analyzer, single channel, front panel inputs.
4542 Dual channel, front panel inputs
02 Rear sensor inputs
03 Calibrator, rear panel output
30 Warranty extended to 3 years
