Quartz Reference Pressure Transducer (Q-RPT) Modules

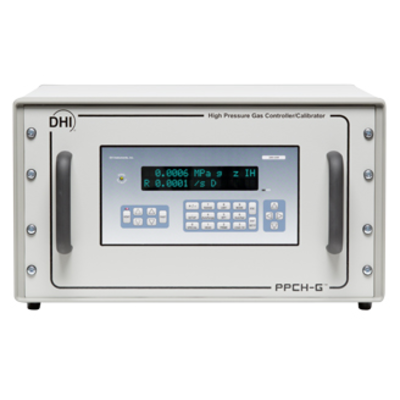

PPCH-G’s outstanding pressure measurement specifications are made possible by the exclusive quartz reference pressure transducer (Q-RPT) modules.
Q-RPTs measure pressure by measuring the change in the natural oscillating frequency of a quartz crystal with pressure induced stress. To be qualified for use in a Q-RPT module, each transducer is individually evaluated and characterized using automated primary pressure standards. Only transducers exhibiting required levels of linearity, repeatability and stability are selected. A proprietary compensation model, derived from more than 15 years experience with thousands of quartz pressure transducers, is applied to optimize the metrological characteristics needed in a transfer standard.
PPCH-G can be delivered with a low cost utility sensor for applications in which the high precision and stability of a Q-RPT are not required.

Q-RPTs available for PPCH-G

Q-RPT Designation

SI Version
Maximum Range
Absolute Gauge
(MPa)

US Version
Maximum Range
AbsoluteGauge
(psi)

A100M

100

15 000

A70M

70

10 000

A40M

40

6 000

A20M

20

3 000

A10M

10

1 500

A7M

7

1 000

Infinite Ranging and AutoRange
There’s a lot more to covering a wide range of test devices with a single gas pressure controller than “% of reading” measurement uncertainty.
In addition to the necessary measurement uncertainty, PPCH-G offers the full pressure control and feature adaptability that are needed for true rangeability in test and calibration applications. Infinite Ranging gives PPCH-G unprecedented versatility in adapting to a wide variety of devices to be tested. With the easy to use AutoRange function, a few simple key strokes or a single remote command string at the start of a test adapts every feature of the gas pressure controller to optimize it for a specific range.
Open architecture
A PPCH-G controller can be configured with up to four Q-RPTmodules. These can be internal or external to the PPCH-G controller. External Q-RPTs are in RPM4 Reference Pressure Monitors. The RPM4’s Q-RPTs then become part of the PPCH-G system and are managed by PPCH-G. External Q-RPTs must be disconnected or protected by valves when PPCH-G is used at pressure greater than the external Q-RPT range.
Examples of possible PPCH-G system configurations include:
A PPCH-G with one or two built-in Q-RPTs to act as a stand alone, “one box” controller/calibrator package.
A PPCH-G with no internal Q-RPTs and an external Q-RPT to configure a system whose reference pressure measurement is remote from the controller. This configuration is ideal when it is advantageous for the reference to be removed from the system (e.g. for recalibration) while leaving the controller installed or to locate the reference measurement in closer proximity to the device or system under test.
A PPCH-G with a built-in Q-RPT to automate pressure controll to a PG7202 piston gauge.
A PPCH-G with no built-in Q-RPTs to act as a lower cost automated pressure setting and controlling device.
