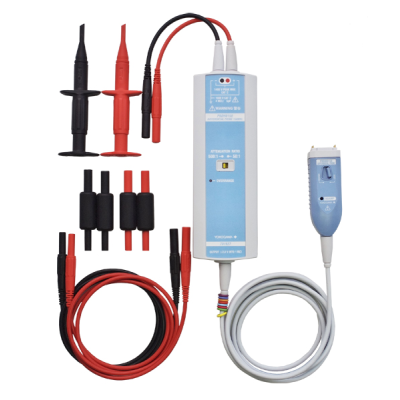

The 701927 is a 50:1 or 500:1 high voltage (1400V peak) probe with extended bandwidth covering DC to 150MHz, This probe provides a balanced differential input, to be used with oscilloscopes with single-ended inputs (1 M_ Input Impedance). This probe works with DLM2000, DLM4000, DL6000, DLM6000, DL9000 and SB5000. This probe is conveniently powered by the Yokogawa Probe Interface I/F.

1400 Vpeak capability is suitable for un-grounded and floating voltage measurements in power electronics and mechatronics applications including inverters, motor drives, and power supplies. 1 m long extension lead pair is included as a standard accessory. Standard pincher tips are exchangeable a wide variety of 4mm safety adapters (sold separately). Reduced size and weight over comparable probes (50% reduced volume over the Yokogawa 700924).
Specifications

Input type
Balanced differential input

Frequency band
DC TO 150 MHz (-3 dB)

Input attenuation ratio
50:1 and 500:1, user selectable

Input impedance
Approximately 4 M_

Maximum allowed differential voltage
± 1400 V(DC+ACpeak) (1/500)

Maximum common mode input voltage
± 1400 V(DC+ACpeak) or 1000 Vrms

Common Mode Rejection Ratio (CMRR)
-80 dB (60 Hz), -50 dB (1 MHz)

Output voltage
±2.8 V

Output impedance
Used with 1 M_ input impedance

Power Supply
Yokogawa Probe Interface Only

External dimensions (approximate)
174 mm x 58 mm x 27 mm

Total length
Approximately 2.4 meters

Weight
Approximately 500 grams

Approved standards
