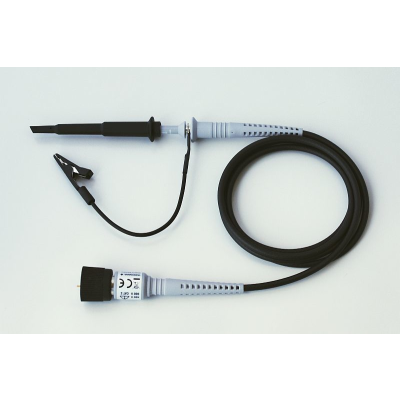

Yokogawa MINIATURE PASSIVE PROBE 701946

Product Details

  • Manufacturer: Yokogawa

  • Model: 701946

  • Description:

    MINIATURE PASSIVE PROBE 701946. printable product image. Passive Probe, 400Vrms, 500MHz, 10:1, 10M_, 1.3m, ‘Mini’ w/ accy kit. Optional probe for…

No Current Sellers for Yokogawa 701946

Sign Up/Login to get notified when someone has one for sale.

Passive Probe, 400Vrms, 500MHz, 10:1, 10M_, 1.3m, ‘Mini’ w/ accy kit. Optional probe for DLM2000/DLM4000/DL6000/DLM6000/DL9000/SB6000 series.Can also be ordered as a substitute for the standard probe when ordering DLM2000/DL6000/DLM6000.

Specifications

Bandwidth: DC to 500MHz (-3dB)
Attenuation Ratio: 10:1
Input resistance: 10M_
Input capacitance: 9.5pF
Compensation Range: 10pF to 25pF
Rise Time: <700ps
Max. input voltage: 400Vrms
Probe Length (coax): 1.2 meter
Standard accessories include: generous accessory kit included for IC and PCB measurements
