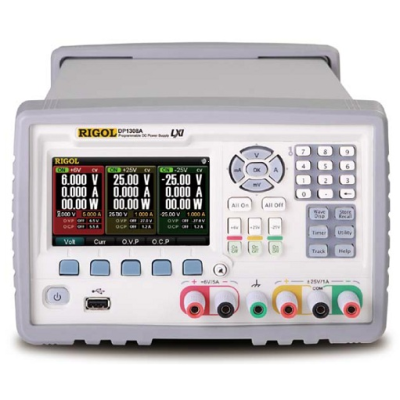

Rigol DP1308A Triple Output, 80 Watt Power Supply

Product Details

Manufacturer: Rigol
Model: DP1308A
Description:
Triple Output, 80 Watt Power Supply

No Current Sellers for Rigol DP1308A

The DP1308A Series Power Supply is a high-performance 80 W triple output programmable linear DC power supply. It has excellent features including timed outputs and tracking capabilities; extremely clean power ripple and noise, comprehensive over-voltage, over current, over-temperature protection, a clean user interface, super performance specifications, and standard interfaces. These power supplies meet the requirements of a wide range of benchtop development applications as well as industrial control and production testing.

Linear Power Supply design for improved performance
Full color display with real time Volts, Amps, and Watts readout
Wave Track monitors outputs over time
GPIB, LXI-C (Ethernet), USB host & device interfaces all standard
Program channels to automatically change value over time
Save and store setups on flash memory drive

Model : DP811
Channels : 1
DC Output (0C to 40C ) :
Voltage/current : 0 to 20 V/ 0 to 10 A (Low Range) or
0 to 40 V/0 to 5 A (High Range)
OVP/OCP : 0.1 V to 22 V or
0.1 V to 44 V
Load Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Linear Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Ripples and Noise (20Hz to 20MHz) :
Normal Mode Voltage : <350_Vrms/2mVpp
Normal Mode Current : <2mArms
Common Mode Current : Not specified
Annual Accuracy ¹ (25C 5C ) (Output Percentage + Offset) :
Programming : Voltage
Current : 0.1% + 10mA
Readback : Voltage
Current : 0.1% + 10mA
Resolution :
Programming : Voltage
: Current
Readback : Voltage
: Current
Display : Voltage
: Current
Transient Response Time :
Less than 50_s for output to recover to within 15mV following a change in output current from full load to half load or vice versa. :
Command Processing Time ² :
<118ms :
Temperature Coefficient per degree C (Output Percentage + Offset) :
Voltage : 0.01%3mV
Current : 0.02%3mA
Stability ³ (Output Percentage + Offset) :
Voltage : 0.02%1mV
Current : 0.1%1mA
Model : DP811A
Channels : 1
DC Output (0C to 40C ) :
Voltage/current : 0 to 20 V/ 0 to 10 A (Low Range) or

0 to 40 V/0 to 5 A (High Range)

OVP/OCP : 0.1 V to 22 V or
0.1 V to 44 V
Load Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Linear Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Ripples and Noise (20Hz to 20MHz) :
Normal Mode Voltage : <350_Vrms/2mVpp
Normal Mode Current : <2mArms
Common Mode Current : Not specified
Annual Accuracy ¹ (25C 5C ) (Output Percentage + Offset) :
Programming : Voltage
Current : 0.1% + 10mA
Readback : Voltage
Current : 0.1% + 10mA
Resolution :
Programming : Voltage
: Current
Readback : Voltage
: Current
Display : Voltage
: Current
Transient Response Time :
Less than 50_s for output to recover to within 15mV following a change in output current from full load to half load or vice versa. :
Command Processing Time ² :
<118ms :
Temperature Coefficient per? (Output Percentage + Offset) :
Voltage : 0.01%3mV
Current : 0.02%3mA
Stability ³ (Output Percentage + Offset) :
Voltage : 0.02%1mV
Current : 0.1%1mA
Model : DP821
Channels : 2
DC Output (0C to 40C ) :
Voltage/current : CH1: 0 to 8 V
0 to 10 A

CH2: 0 to 60 V
0 to 1 A
OVP/OCP : CH1: 0.1 to 8.8 V
0.1 to 10.5 A

CH2: 0.1 to 66 V
0.1 to 1.1 A
Load Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Linear Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Ripples and Noise (20Hz to 20MHz) :
Normal Mode Voltage : <350_Vrms/2mVpp
Normal Mode Current : <2mArms
Common Mode Current : Not specified
Annual Accuracy ¹ (25C 5C ) (Output Percentage + Offset) :
Programming : Voltage
Current : 0.2% + 10mA
Readback : Voltage
Current : 0.15% + 10mA
Resolution :
Programming : Voltage
: Current
Readback : Voltage
: Current
Display : Voltage
: Current
Transient Response Time :
Less than 50_s for output to recover to within 15mV following a change in output current from full load to half load or vice versa. :
Command Processing Time ² :
<118ms :
Temperature Coefficient per degree C (Output Percentage + Offset) :
Voltage : 0.01%3mV
Current : 0.02%3mA
Stability ³ (Output Percentage + Offset) :
Voltage : 0.02%1mV
Current : 0.1%1mA
Model : DP831
Channels : 3
DC Output (0C to 40C ) :
Voltage/current : CH1: 0 to 8V/0 to 5A
CH1: 0 to 30V/0 to 2A
CH1: 0 to -30V/0 to 2A
OVP/OCP : CH1: 1mV ~ 8.8V/0.1mA ~ 5.5A
CH1: 1mV ~ 33V/0.1mA ~ 2.2A
CH1: -1mV ~ -33V/0.1mA ~ 2.2A
Load Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Linear Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Ripples and Noise (20Hz to 20MHz) :
Normal Mode Voltage : <350_Vrms/2mVpp
Normal Mode Current : <2mArms
Common Mode Current : <1.5_Arms
Annual Accuracy ¹ (25C 5C ) (Output Percentage + Offset) :
Programming : Voltage
Current : CH1: 0.2% + 10mA
CH2: 0.2% + 5mA
CH3: 0.2% + 5mA
Readback : Voltage
Current : CH1: 0.2% + 10mA
CH2: 0.1% + 5mA
CH3: 0.1% + 5mA
Resolution :
Programming : Voltage
: Current
Readback : Voltage
: Current
Display : Voltage
: Current
Transient Response Time :
Less than 50_s for output to recover to within 15mV following a change in output current from full load to half load or vice versa. :
Command Processing Time ² :
<118ms :
Temperature Coefficient per degree C (Output Percentage + Offset) :
Voltage : 0.01%2mV
Current : 0.02%3mA
Stability ³ (Output Percentage + Offset) :
Voltage : CH1: 0.03% + 1mV
CH2: 0.02% + 2mV
CH3: 0.02% + 2mV
Current : CH1: 0.1% + 3mA
CH2: 0.05% + 1mA
CH3: 0.05% + 1mA
Model : DP831A
Channels : 3
DC Output (0C to 40C ) :
Voltage/current : CH1: 0 to 8V/0 to 5A
CH1: 0 to +30V/0 to 2A
CH1: 0 to -30V/0 to 2A
OVP/OCP : CH1: 1mV ~ 8.8V/0.1mA ~ 5.5A
CH1: 1mV ~ 33V/0.1mA ~ 2.2A
CH1: -1mV ~ -33V/0.1mA ~ 2.2A
Load Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Linear Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Ripples and Noise (20Hz to 20MHz) :
Normal Mode Voltage : <350_Vrms/2mVpp
Normal Mode Current : <2mArms
Common Mode Current : <1.5_Arms
Annual Accuracy ¹ (25C 5C ) (Output Percentage + Offset) :
Programming : Voltage
Current : CH1: 0.2% + 10mA
CH2: 0.2% + 5mA
CH3: 0.2% + 5mA
Readback : Voltage
Current : CH1: 0.2% + 10mA
CH2: 0.1% + 5mA
CH3: 0.1% + 5mA
Resolution :
Programming : Voltage
: Current
Readback : Voltage
: Current
Display : Voltage
: Current
Transient Response Time :
Less than 50_s for output to recover to within 15mV following a change in output current from full load to half load or vice versa. :
Command Processing Time ² :
<118ms :
Temperature Coefficient per degree C (Output Percentage + Offset) :
Voltage : 0.01%2mV
Current : 0.02%3mA
Stability ³ (Output Percentage + Offset) :
Voltage : CH1: 0.03% + 1mV
CH2: 0.02% + 2mV
CH3: 0.02% + 2mV
Current : CH1: 0.1% + 3mA
CH2: 0.05% + 1mA
CH3: 0.05% + 1mA
Model : DP832
Channels : 3
DC Output (0C to 40C ) :
Voltage/current : CH1: 0 to 30V/0 to 3A CH2: 0 to 30V/0 to 3A CH3: 0 to 5V/0 to 3A
OVP/OCP : CH1: 10mV~33V/1mA~3.3A CH2: 10mV~33V/1mA~3.3A CH3: 10mV~5.5V/1mA~3.3A
Load Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Linear Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Ripples and Noise (20Hz to 20MHz) :
Normal Mode Voltage : <350_Vrms/2mVpp
Normal Mode Current : <2mArms
Common Mode Current : <1.5_Arms
Annual Accuracy ¹ (25C 5C ) (Output Percentage + Offset) :
Programming : Voltage
Current : 0.2% + 10mA
Readback : Voltage
Current : 0.15% 5mA
Resolution :
Programming : Voltage
: Current
Readback : Voltage
: Current
Display : Voltage
: Current
Transient Response Time :
Less than 50_s for output to recover to within 15mV following a change in output current from full load to half load or vice versa. :
Command Processing Time ² :
<118ms :
Temperature Coefficient per? (Output Percentage + Offset) :
Voltage : CH1/CH2: 0.01%5mV CH3: 0.01%2mV
Current : 0.01%2mA
Stability ³ (Output Percentage + Offset) :
Voltage : CH1/CH2: 0.02%2mV CH3: 0.01%1mV
Current : 0.05%2mA
Model : DP832A
Channels : 3
DC Output (0C to 40C ) :
Voltage/current : CH1: 0 to 30V/0 to 3A CH2: 0 to 30V/0 to 3A CH3: 0 to 5V/0 to 3A
OVP/OCP : CH1: 1mV to 33V/1mA to 3.3A CH2: 1mV to 33V/1mA to 3.3A CH3: 1mV to 5.5V/1mA to 3.3A
Load Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Linear Regulation Rate (Output Percentage + Offset) :
Voltage : <0.01%2mV
Current : <0.01%250uA
Ripples and Noise (20Hz to 20MHz) :
Normal Mode Voltage : <350_Vrms/2mVpp
Normal Mode Current : <2mArms
Common Mode Current : <1.5_Arms
Annual Accuracy ¹ (25C 5C ) (Output Percentage + Offset) :
Programming : Voltage
Current : 0.2% + 10mA
Readback : Voltage
Current : 0.15%+ 5mA
Resolution :
Programming : Voltage
: Current
Readback : Voltage
: Current
Display : Voltage
: Current
Transient Response Time :
Less than 50_s for output to recover to within 15mV following a change in output current from full load to half load or vice versa. :
Command Processing Time ² :
<118ms :
Temperature Coefficient per? (Output Percentage + Offset) :
Voltage : CH1/CH2: 0.01%5mV CH3: 0.01%2mV
Current : 0.01%2mA
Stability ³ (Output Percentage + Offset) :
Voltage : CH1/CH2: 0.02%2mV CH3: 0.01%1mV
Current : 0.05%2mA
Model : DP1308A
Output Ranges/Channels : +6 V
DC Output ( 0_ – 40_) :
Voltage : 0 to +6V
Current : 0 to 5 A
Overvoltage Protection : 0.1 V to 6.5 V
Overcurrent Protection : 0.1 A to 5.5 A
Load Regulation (output percentage + offset) :
Voltage : < 0.01% + 2 mV
Current : < 0.01% + 250 _A
Line Regulation (output percentage + offset) :
Voltage : < 0.01% + 2 mV
Current : < 0.01% + 250 _A
Ripple and Noise (20 Hz – 20 MHz) :
Normal Mode Voltage : < 350 _V rms/2 mVpp
Normal Mode Current : < 2 mA rms
Common Mode Current : <1.5 A rms
Accuracy 12 Months¹ (25_5)(output percentage + offset) :
Programming : Voltage
: Current
Read Back : Voltage
: Current
