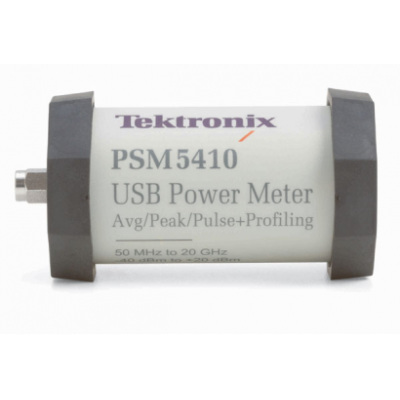

Choose from a range of Tektronix RF Power Meters to meet your needs. The PSM3000 Series power meter/sensor provides true average power measurements, giving accurate power measurements independent of signal modulation and bandwidth.  The PSM4000 Series power meter/sensor delivers average power (CW) measurements, and adds pulse and peak power measurements for gathering basic data on pulsed RF and microwave signals. The PSM5000 Series power meter/sensor provides the same measurements as the PSM4000, but comes with added pulse profiling capability for signal viewing and characterization in pulsed RF and microwave systems.

FeaturesBenefitsCalibrated over Full temperature rangeNo zero or cal needed before making measurements, saving time and avoiding poor quality dataAverage Power, Duty Cycle Corrected Pulse Power, LoggingIncreased utility and functionality for basic power measurements with logging, trend graphing, and limit testing on all modelsUSB form factor and Windows ConnectivityReduce rack space and need for separate controller. Runs on Tektronix Windows instruments.Rates to 2000 reads /sDecrease test time with fastest power measurements available in power meter/sensorTTL Trigger Input and OutputSynchronize testing with DUT or other ATE test equipment with advanced trigger functionalityPSM4000/5000 Pulse MeasurementsCharacterize pulse signals with adjustable offset and durationPSM5000 Pulse ProfilingPulse profiling application software provides rise/fall time, overshoot, droop, repetition frequency and other key measurements on repetitive, pulsed signalsPC ConnectivityControl your power meter, log data, and transfer measurement results with LabView drivers and Windows drivers
