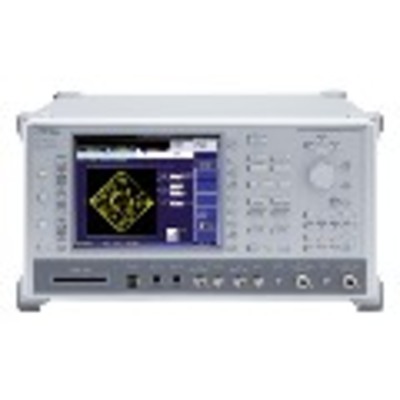

The Radio Communication Analyzer MT8820C platform covers 30 MHz to 2.7 GHz (3.4 GHz to 3.8 GHz valid only if MT8820C018 is installed). Installing optional software and hardware supports evaluation of key TRx characteristics for LTEAdvanced FDDTDD DL CA, LTE FDDTDD, WCDMAHSPAHSPA EvolutionDCHSPA4CHSDPA, CDMA2000 1X1xEVDO, TDSCDMATDHSPATDHSDPA Evolution, GSMGPRSEGPRS, and PHSADVANCED PHS terminals.One MT8820C supports high-speed batch measurements of RF TRx characteristics and call connection tests for 2G/3G/4G mobile terminals.
In addition, installing the MX882012C/13C supports RF TRx tests
required for manufacturing LTE FDD/TDD terminals and data cards.
The MX882012C/13C supports 2×2 MIMO DL LTE Rx throughput tests too.

Data Sheet

Communication System Software Model No. LTE * LTE FDD Measurement Software MX882012C LTE-Advanced FDD DL CA Measurement Software MX882012C-021 *1 LTE TDD Measurement Software MX882013C LTE-Advanced TDD DL CA Measurement Software MX882013C-021 *1 LTE FDD Measurement Software Lite MX882042C *2 LTE TDD Measurement Software Lite MX882043C *2 W-CDMA W-CDMA Measurement Software MX882000C W-CDMA Call Processing Software MX882050C *3 MX882051C *3 W-CDMA Ciphering Software MX882070C *3 MX882071C *3 HSDPA Measurement Software MX882000C-011 *3 HSUPA Measurement Software MX882000C-021 *3 HSPA Evolution Measurement Software MX882000C-031 *3 DC-HSDPA Measurement Software * MX882000C-032 *3, *4 DC-HSUPA Measurement Software * MX882000C-033 *3, *5 4C-HSDPA Measurement Software * MX882000C-034 *3, *6 TD-SCDMA TD-SCDMA Measurement Software MX882007C TD-SCDMA HSDPA Measurement Software MX882007C-011 *7 TD-SCDMA HSDPA Evolution Measurement Software MX882007C-012 TD-SCDMA HSUPA Measurement Software MX882007C-021 *7 GSM/GPRS/EGPRS GSM Measurement Software MX882001C EGPRS Measurement Software MX882001C-011 CDMA2000 1X/1xEV-DO CDMA2000 1X Measurement Software MX882002C CDMA2000 1xEV-DO Measurement Software MX882006C *8 CDMA2000 1xEV-DO Rev.A Measurement Software MX882006C-011 *8 PHS/ADVANCED PHS PHS Measurement Software MX882005C ADVANCED PHS Measurement Software MX882005C-011 LTE * Parallelphone Measurement Software MX882010C W-CDMA TD-SCDMA GSM/GPRS/EGPRS CDMA2000 1X/1xEV-DO

*:
Supported by the MT8820C.

*1:
For LTE-Advanced FDD/TDD CA terminal connection, contact your Anritsu sales representative for configuration.

*2:
The MX882042C and MX882043C are non-Call Processing products.

*3:
For supported W-CDMA terminal connections, contact your sales representative for configuration.

*4:
DC-HSDPA measurements require the MT8820C-012, MT8820C-001 (2 sets), MX882000C, MX882000C-011, MX882000C-021, MX882000C-031, MX882000C-032, MX882010C and MX882050C (as well as one MT8820C).

*5:
DC-HSUPA measurements require the MT8820C-012, MT8820C-001 (2 sets), MX882000C, MX882000C-011, MX882000C-021, MX882000C-031, MX882000C-032, MX882000C-033, MX882010C and MX882050C (as well as one MT8820C).

*6:
4C-HSDPA measurements require the MT8820C-012, MT8820C-001 (2 sets), MX882000C, MX882000C-011, MX882000C-021, MX882000C-031, MX882000C-032, MX882000C-034, MX882010C and MX882050C (as well as one MT8820C).

*7:
For supported TD-SCDMA HSDPA/HSUPA terminal connections, contact your sales representative for configuration.

*8:
The MX882006C supports RF measurements for CDMA2000 1xEV-DO Rev. 0 terminals. The MX882006C-011 supports RF measurements for CDMA2000 1xEV-DO Rev. A terminals.

RF tests for LTE-Advanced DL CA, LTE, 2G and 3G terminals
Market-leading TD-SCDMA functionality including HDPA and HSDPA Evolution
Fast test times for R&D, service and manufacturing
Supports manufacturing including non-signaling UE calibration and functional tests
Backwards compatibility with MT8820A/B
Parallelphone™ measurement option for testing 2 phones at once
