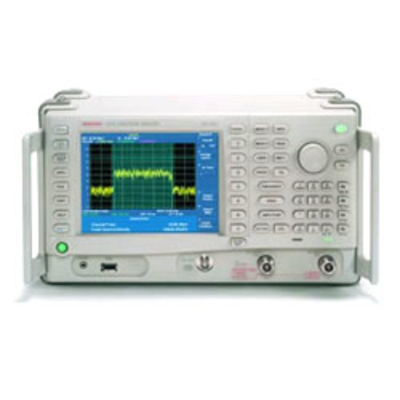

Wireless LAN networks, cellular telephones, contactless smart cards, terrestrial digital broadcasts - all of them have become a part of our daily lives, and all of them use high-frequency wireless technology. Diversifying applications and expanding demand for communications devices have exacerbated competition in the market, placing manufacturers under pressure to reduce manufacturing costs. Makers of test and measurement equipment can support increased cost-efficiency by offering faster performance evaluations, thus reducing cost of test and equipment costs. Additionally, demand from device manufacturers has driven a trend for measuring instruments to grow smaller and lighter, so that they may be transported outside the factory, to any location where maintenance and testing work needs to be done. The U3741/U3751 is a portable spectrum analyzer that precisely meets to these demands.

Key Features

• Compact design, light weight and battery operated
• 3GHz 2nd RF input channel option
• Low cost Time Domain Analysis: Frequency/Phase/Power/IQ vs Time

Main Performance

• Frequency range: U3741: 9 kHz to 3 GHz, U3751: 9 kHz to 8 GHz
• Noise level: -135dBm (CF 1GHz, Pre-Amp ON, RBW 100Hz)
• Resolution bandwidths: U3741: 100Hz to 1MHz, U3751: 100Hz to 3MHz
• ? RBW 30Hz optional

General Function

• RMS detection supports high-speed, high-stability power measurement
• Emission Mask, OBW/ACP, and other limit test functions
• USB Interface for saving/recalling configuration files and measurement data

Model    Description    Comment
OPT.10    2 Channel Input (Add a 3GHz RF input)
OPT.11    75Ω 2 Channel Input    U3741 Only
OPT.15    75Ω Input Impedance    U3741 Only
OPT.20    High stability frequency reference crystal
OPT.28    EMC filter
OPT.53    Time-domain analysis (1 ch)
OPT.54    Time-domain analysis (2 ch)
OPT.55    Wide-band time-domain analysis (1 ch)
OPT.56    Wide-band time-domain analysis (2 ch)
OPT.70    High-Purity Spectrum Analysis (1 ch)
OPT.71    High-Purity Spectrum Analysis (2 ch)
OPT.75    75Ω Tracking Generator    U3741 Only
OPT.76    3GHz Tracking Generator
OPT.77    6GHz Tracking Generator    U3751 Only
A114020    DC power cable
A122003    Rack mount kit (JIS)
A124004    Rack mount kit (EIA)
A129001    Carrying bag
A129002    Transit case
A870008    Battery pack
A870009    Charger
JU3700S-A    Japanese operating manual (printed manual)
EU3700S-A    English operating manual (printed manual)
ZT-130NC    75Ω impedance converter
