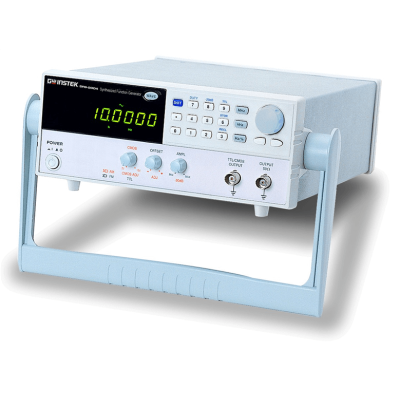

Based on the Direct Digital Synthesized (DDS) technology and unique FPGA design, the SFG-2000/2100 Series Function Generators are built with exceptionally high performance far exceeding that of any conventional function generators at a very competitive price. Stable output frequency, low distortion, and fine frequency resolution are the most remarkable characteristics of this product series.The SFG-2000/2100 Series include four members in each family at 4MHz and 10MHz bandwidth(perivd), The SFG-2100 Series have additional functions of Sweep, AM/FM modulation, and External Counter. As a result of the 20ppm stability level and output waveform accuracy, The SFG-2000/2100 Series well fit into a wide variety of applications, such as signal generator for experiment labs, reference signal for PLL (Phase Locked Loop), and calibration and adjustment source for electronic devices. // OUTPUT WAVEFORM The SFG-2000/2100 Series provide Sine, Triangle and Square waveforms with DC offset and variable duty cycle at 20ppm frequency stability and accuracy. The low drift rate and -55dBc low sine wave distortion output significantly extend product application range in various market sectors.The TTL/CMOS output is also available to fulfill various requirements. In addition to the basic functions, The SFG-2100 Series provide advanced functions such as AM/FM modulation, sweep mode, and Built-In Frequency Counter.

DDS Technique and FPGA Chip Design
Frequency Range : 0.1Hz~4/10MHz
High Frequency Accuracy : 20ppm
Frequency Resolution : 100mHz
Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
Front Panel Setting Save/Recall with 10 Groups of Setting Memories
Built-In 9 Digits,150MHz/High Resolution Counter(SFG-2110 Only)
INT/EXT AM/FM Modulation (SFG-2110 Only)
LIN/LOG Sweep Mode(SFG-2110 Only)
