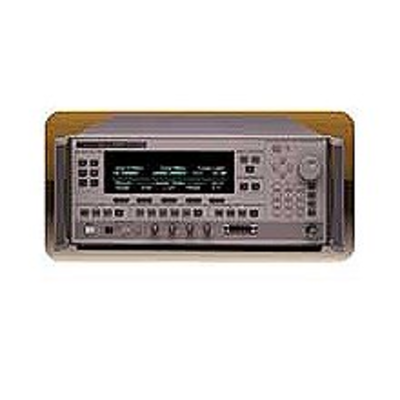

The Keysight 83620A synthesized sweeper is used for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Keysight 83620A to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 20 GHz.

Scan modulation to simulate antenna scan patterns
Accurate fixed and swept frequency offset for two-tone measurement
User flatness correction for leveling at remote points in the test system
General purpose source for use in component test, receiver test and for frequency conversion
Sweep modes: Step, List, Ramp
Maximum power (<20 GHz): +13 dBm
Power sweep range: 20 dBm to maximum power
Phase noise (20 GHz at 10 KHz): -70 dBc
Max FM deviation (locked): +/ 8 MHz
