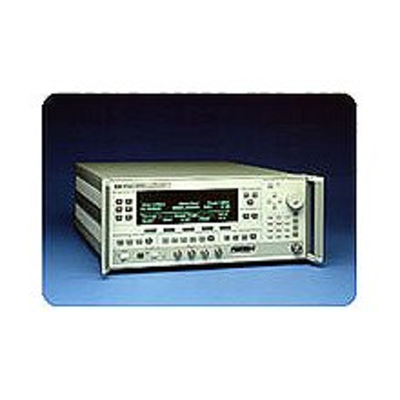

The Keysight 83620B synthesized sweeper for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Keysight 83620B to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 20 GHz.

+13 dBm calibrated output power

50 dBc harmonics <20 GHz typical
SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset
Complete analog sweeper
1 Hz frequency resolution (Option 008)
Pulse, amplitude and frequency modulation (8360B Series only)
110 dBm output power with step attenuator (Option 001)

Option 001 adds step attenuator With this option, minimum settable output power is _110 dBm. Maximum leveled output power is reduced by 1.5 dB to 20 GHz, 2 dB above 20 GHz, and 2.5 dB above 40 GHz.
Option 002 adds internal modulation generator (8360B only _ not available on 8360L) Adds a digitally synthesized modulation waveform source-on-a-card to the 8360. Provides signals that would otherwise be applied to the external modulation inputs.
Option 004 rear panel RF output Moves RF output, external ALC input, pulse input/output, AM input, and FM input connectors to the rear panel.
Option 006 fast pulse modulation (8360B only _ not available on 8360L) Improves pulse rise/fall time to 10 ns. Also improves harmonic performance.
Option 008 1 Hz frequency resolution Provides frequency resolution of 1 Hz.
