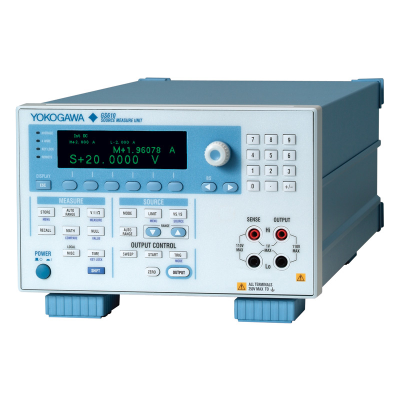

The GS610 is a highly accurate and highly functional programmable voltage/current source that incorporates voltage/current generation and measurement functions. The maximum output voltage and current are 110 V and 3.2 A, respectively. Evaluation of over a wide range of basic electrical characteristics is possible, because the GS610 can operate as a current source or a current sink.

USB STORAGE
V/I CURVE TRACER
ARBITARY WAVEFORM
WAVEFORM REPRODUCTION

             Bulletin 7655-00E         Leaflet 7656-30E

Voltage/Current Generation and Measurement Range
ArrayGeneration and Measurement Functions
The GS610 is made up of a constant current source, a constant voltage source, a voltmeter, and an ammeter. Each function can be combined into numerous operation modes.
Operation modes:Voltage generation/current measurement (VS/IM);
Voltage generation/voltage measurement (VS/VM);
Current generation/voltage measurement (IS/VM);
Current generation/current measurement (IS/IM);
Voltage generation (VS);
Current generation (IS);
Resistance measurement (VS/IM or IS/VM)
Additionally, control and measurement using a two-wire system or a four-wire system are possible by switching local sensing and remote sensing internally.
Various Operation Modes
