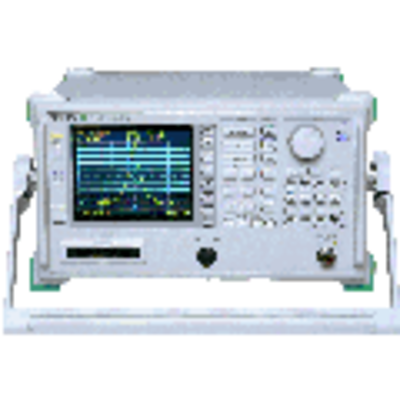

The MS2663C Portable Spectrum Analyzer is a synthesized spectrum analyzer covering a wide frequency range from 9 kHz to 8.1 GHz.

It has superior basic performance such as high C/N ratio, low distortion, and high frequency/level accuracies and is easy to operate.

It has a Measure function for evaluation of radio equipment that includes a frequency counter and one-button evaluation of C/N, adjacent channel power, occupied frequency bandwidth, and burst average power.

It has a large selection of options and application software packages.

This product has been discontinued.Replacement Model(s) : MS2687B, MS2719B, MS2830A, MS2830A Microwave

Narrow resolution bandwidth : 30, 100, 300 Hz
High-speed time domain sweep : 1.25 _s/div
Trigger/gate circuit : Pre-trigger and post trigger available
AM/FM demodulator : Outputs to loudspeaker or earphone connector
Pre-amplifier : 100 kHz to 3 GHz, 20 dB
Centronics interface : GPIB cannot be installed simultaneously
QP detector : Requires Narrow resolution bandwidth option
PTA parallel I/O : Cannot be installed with the Centronics interface option
Sweep signal output : X, Z
DC coupled input : Requires Narrow resolution bandwidth option
Tracking generator : Built-in
Television monitor (Multi) : M-NTSC, B/G/H/I/D PAL
75 W input : Cannot be installed with QP detector, DC coupled input, and Tracking generator simultaneously
75 W tracking generator : Cannot be installed with QP detector, DC coupled input, and Tracking generator simultaneously
