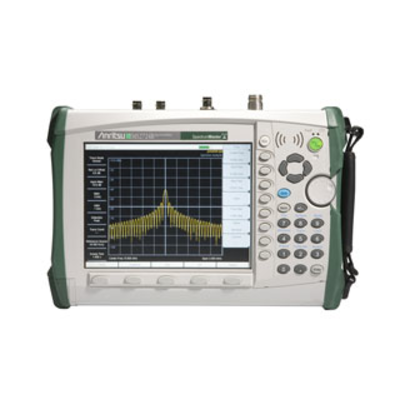

Benchtop features and bandwidth in a handheld spectrum analyzer!The MS2724B handheld spectrum analyzer is designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, and wireless medical patient monitoring systems. The next generation of Anritsu’s best selling Spectrum Master, the MS2724B is a small and easy to use portable spectrum analyzer with unprecedented measurement capability for applications up to 20 GHz. Weighing in at less than 8 pounds, it is equally at home on the engineering bench and in the field. It is ideally suited for measuring up to the fifth harmonic of 3G cellular phone base stations.Several smart measurements are built into the MS2724B including channel power, adjacent channel power ratio, Carrier to Interference ratio (C/I), and field strength. In addition, an AM/FM/SSB demodulator is included. Demodulated signals can be monitored using the internal speaker or by using a universal 2.5 mm 3-wire headset, such as used with many cellular telephones.The MS2724B spectrum analyzer has low phase noise of -104 dBc/Hz typical at 1 GHz @ 10 kHz offset, best in its class typical DANL of -159 dBm at 1 GHz in a 1 Hz RBW, resolution bandwidth (RBW) range of 1 Hz to 3 MHz and video bandwidth (VBW) range of 1 Hz to 3 MHz. It also has the fastest sweep speeds of any spectrum analyzer in its class.
Quasi-peak detection is included along with CISPR resolution bandwidth.Multilingual User Interface (English, Chinese, French, German, Japanese, Spanish, Korean, Italian)

This product has been discontinued.Replacement Model(s) : MS2720T
