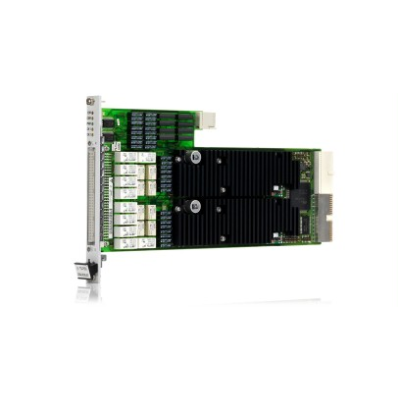

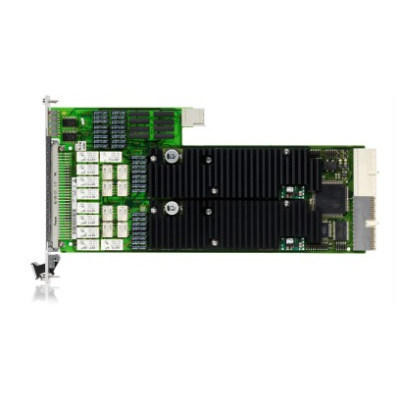

TS-PSU Power Supply/Load Module – TS-PSU power supply and load module with two fully independent and floating source/link channels which can have different ground reference levels.

Two fully independent, floating channels up to 50 V and up to 50 W
4-quadrant mode: bipolar, source and sink
Electronic load functionality 2 × 20 W / 25 W peak
High current 3 A /15 V, 1A / 50 V (2 × 50 W)
Integrated voltage and current measurement
Two voltmeters for external signals available
Analog measurement bus access to 8 bus lines
Recording of voltage or current versus time
External triggering of source and measurement via PXI trigger
Protection overvoltage, overcurrent, overtemperature, short
4:1 relay multiplexer per channel for panel test
Selftest capabilities
Soft front panel support for immediate deployment
LabWindows/CVI driver support
GTSL test software library in DLL format
