The Keysight Acqiris U1071A high-speed PCI digitizers are designed to provide optimized data conversion performance and maximum data throughput that are easily integrated into complex OEM systems. Though a highly configurable digitizer, they use proprietary Keysight ASIC technology to offer a very high level of integration, and feature exceptional low power consumption in a compact package.

The front end of the digitizers includes both signal conditioning ASICs and high-speed analog to digital converter (ADC) components. As with other Acqiris products, the entire front end is mounted on a removable mezzanine card so, in the event of accidental damage, replacement is fast and efficient.

The digitizers are designed to obtain maximum data throughput from this mezzanine ADC to the host PC. The cards feature a PCI 32-bit/66 MHz interface, that allows PCI bus data transfers to the host PC at sustained rates of up to 220 MB/s.

Typical applications using these products include medical instrumentation, storage test, semiconductor, ATE, laser radar, non-destructive testing, software defined radio, spectroscopy and environmental monitoring.

To request more information or ask a product expert for the best and most cost-effective solution

Need to find the digitizer solution that best suits your application? Request our application abstracts

Look beyond banner specifications to choose the right high-speed digitizer

Capture more details from single-shot events with a Keysight high-speed digitizer

Enhance your overall test performance with Keysight high-speed ADC

Achieve best-in-class real-time monitoring using Keysight high-speed ADC

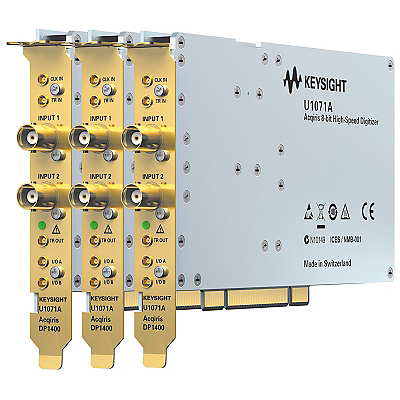

U1071A Acqiris OEM dual-channel high-speed digitizer

Configurable 8-bit digitizer

Up to 2 GS/s real-time sampling rate

Optional 50 input with up to 1 GHz bandwidth guaranteed over 50 mV to 5 V full scale ranges

Optional 1 M input with up to 300 MHz bandwidth guaranteed over 50 mV to 50 V full scale ranges

Optional simultaneous multibuffer acquisition and readout mode for increased measurement throughput

Support for multi-module synchronization, with auto-synchronous bus system for trigger and clock signal distribution

Power requirements Brochure with Full Specifications
